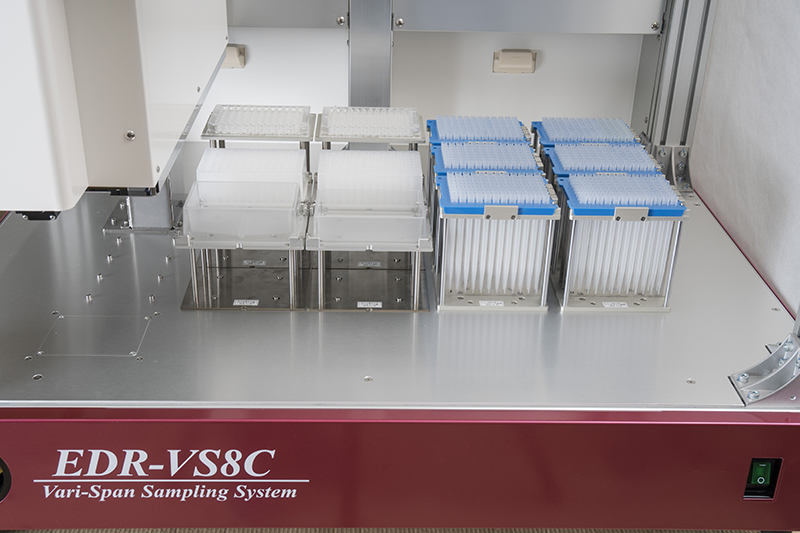

Liquid HandlerEDR-VS8C
double range head model

8ch variable pitch sampling system
Sample sampling and reagent dispensing
¥10,300,000~
  • 8-channel variable pitch dispensing head model with a compact size that is easy to install.
  • Compatible with a variety of containers, including 50mL/15mL centrifuge tubes, blood collection tubes, and microplates.
  • Workspace for 15 microplates.
  • A wide range of options are available, including a temperature control unit and barcode unit.
  • Equipped with various sensors to check tip installation, detect liquid levels, and detect abnormal suction.
Product Catalog

Related Applications

Key Specifications

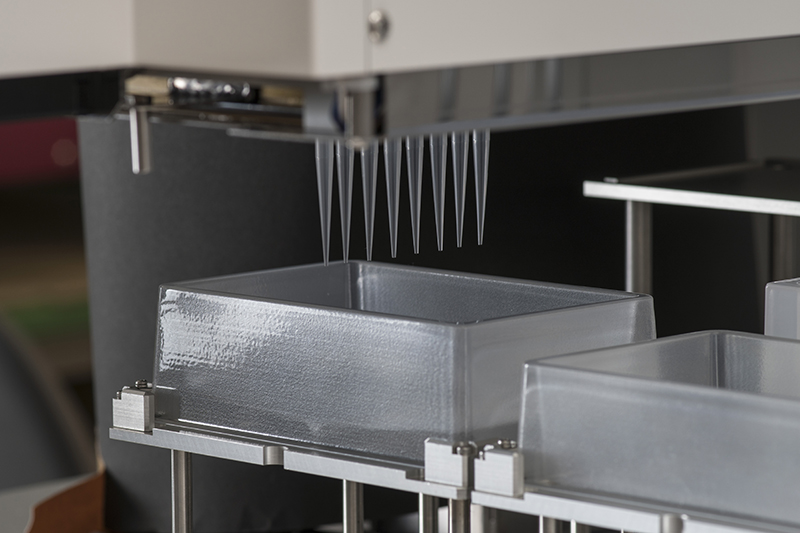

Dispensing system 8ch independent cylinder system
Dispensing volume 1-1100µL

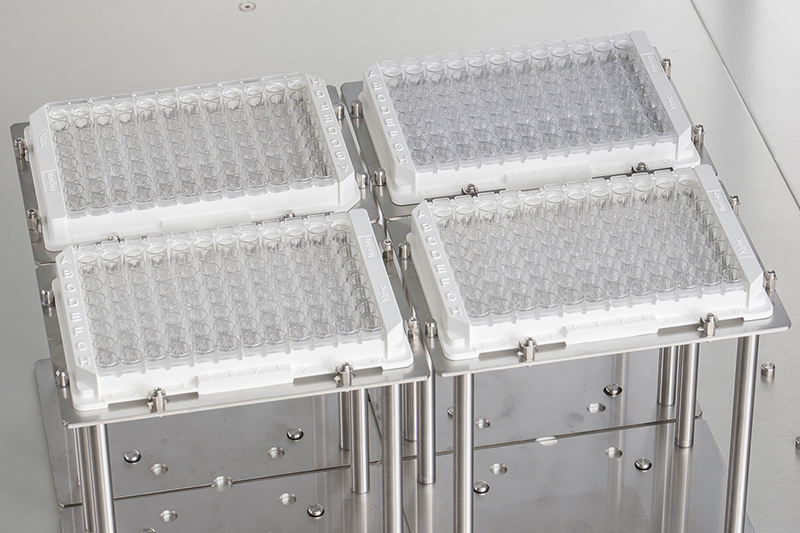

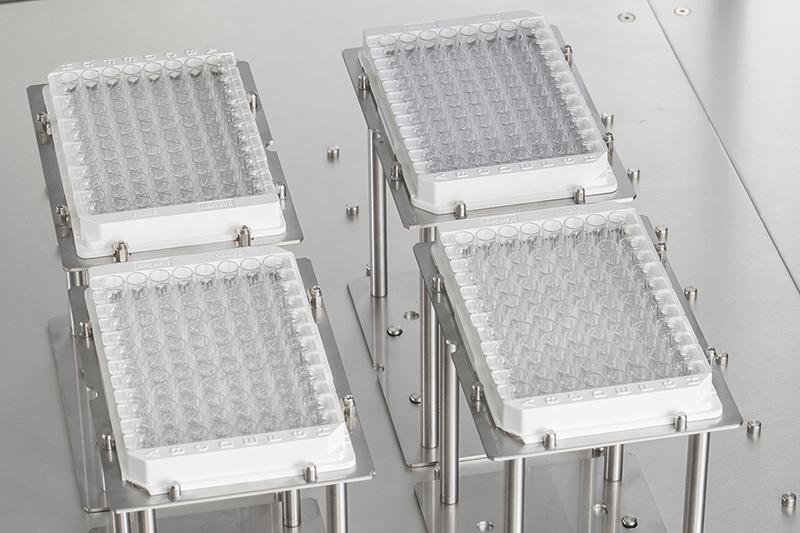

Compatible plates Various 96 micro-well plates, Deep well plates, PCR plates,

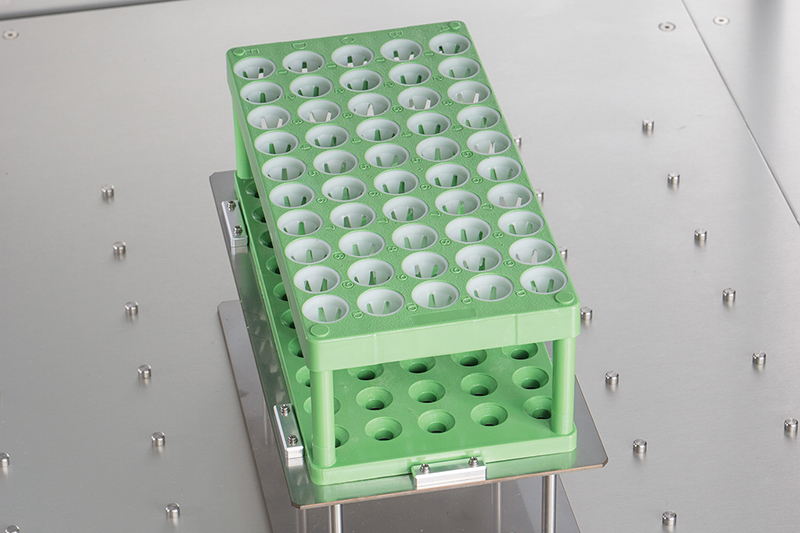

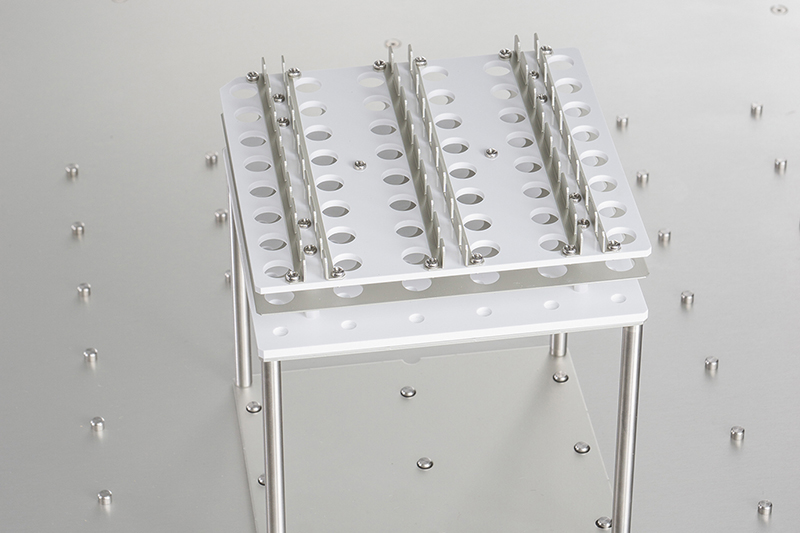

1.5mL/2.0mL micro tube, Blood collection tube, Centrifuge tube etc.
Dispensing precision CV 3% or less (At the time of dispensing of 100 μL)
Pitch Variable Range 9-35mm
Power supply AC100V 50/60Hz

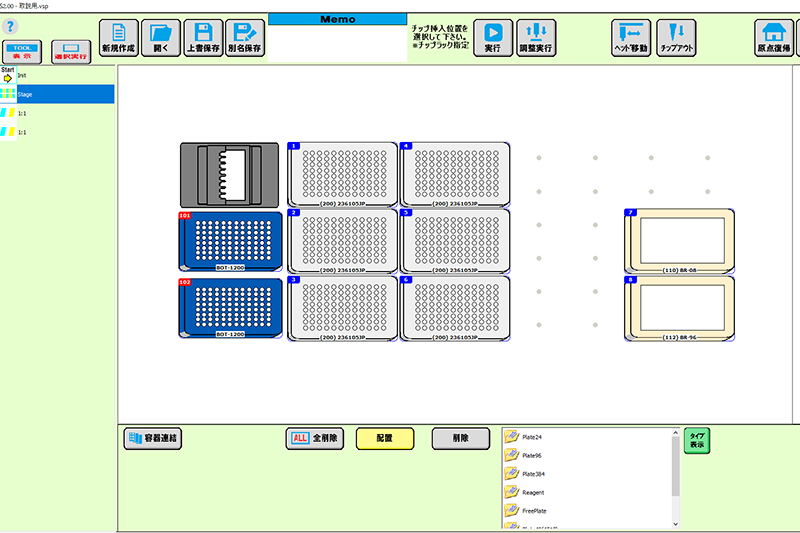

Control Dedicated PC software
Dimensions W965mm×D745mm×H1200mm
Weight About 120 kg

Cylinder head, Tips

Cylinder head Tips Dispensing range
-
  • BST100-384S
  • BST100-384FS
  • BOT1200-96
  • BOT1200-96S
  • BOT1200-96FS
  • 1~40μL
  • 1~40μL
  • 10~1100μL
  • 10~1100μL
  • 10~1000μL

Product introduction video

"EDR-VS8C promotional video"

Frequently Asked Questions

What is the processing capacity?
1000 samples/hour for 8 channels. (No liquid level detection, sampling speed with tip replacement every time, but varies depending on dispensing conditions)
Is there a cover?
It can be attached as an option. HEPA filter [with] or [without] can also be selected.
Is there error detection?
The following cases are detected during aspiration. ① Complete empty aspiration (if there is no liquid from the beginning), ②：Empty aspiration during aspiration (if there is insufficient liquid), ③ Jamming detection (if the tip of the tip is clogged) Otherwise, it is detected if there is no tip or if jamming (collision) occurs.
How is an error detected during aspiration?
It is detected by pressure. (Carbon tips, etc. are not used)
Is there a dedicated PC?
Since it affects the processing speed, we provide a dedicated PC.
