Liquid HandlerEDR-384SE

Benchtop Multi-Pipetter: 96-ch Starter Set (Main unit + PC + 96-ch head); ¥3,300,000; 384-ch Starter Set (Main unit + PC + 384-ch head); ¥4,300,000

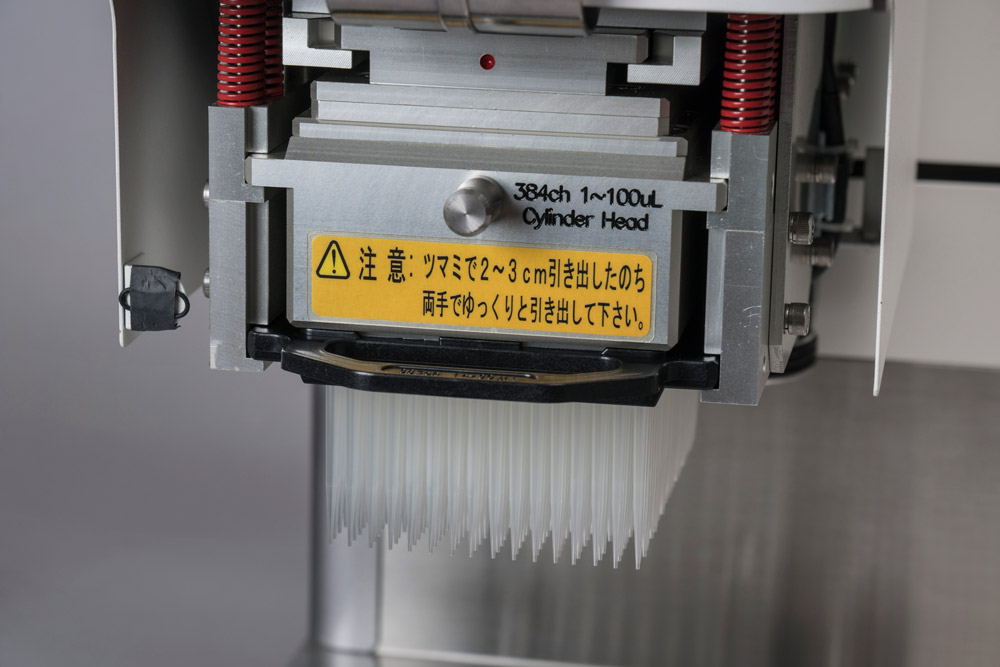

The newly developed “384ch 1-100μL cylinder head” has been added to the lineup, achieving even greater work efficiency.

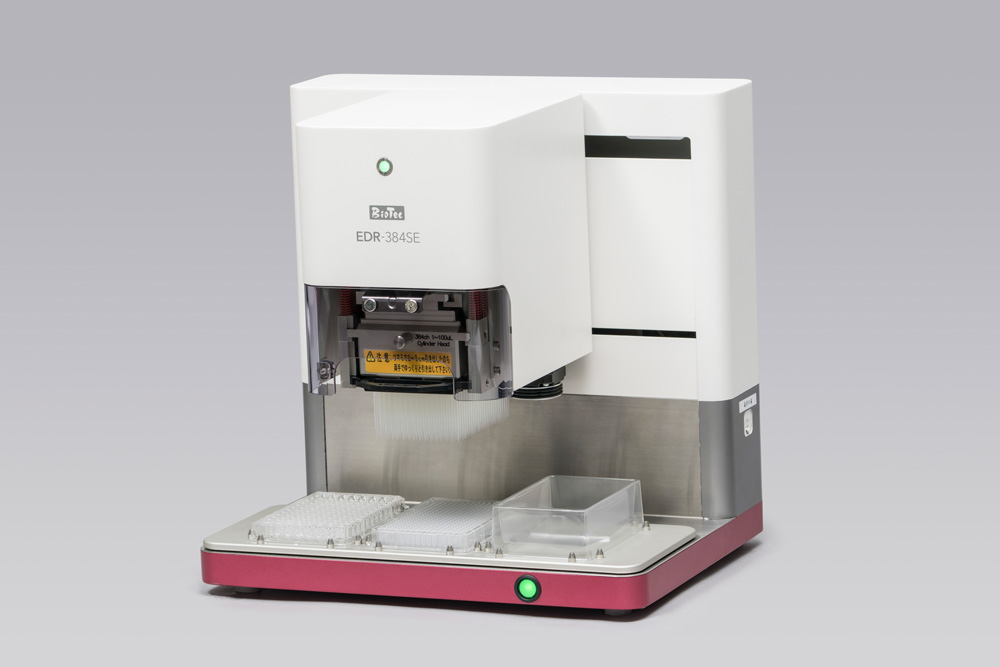

Its compact size allows it to be installed inside a safety cabinet or clean bench.
Tabletop operations such as dispensing reagents into plates, transferring samples, and medium exchange can be easily performed.
96/384ch simultaneous dispensing speeds up your work.

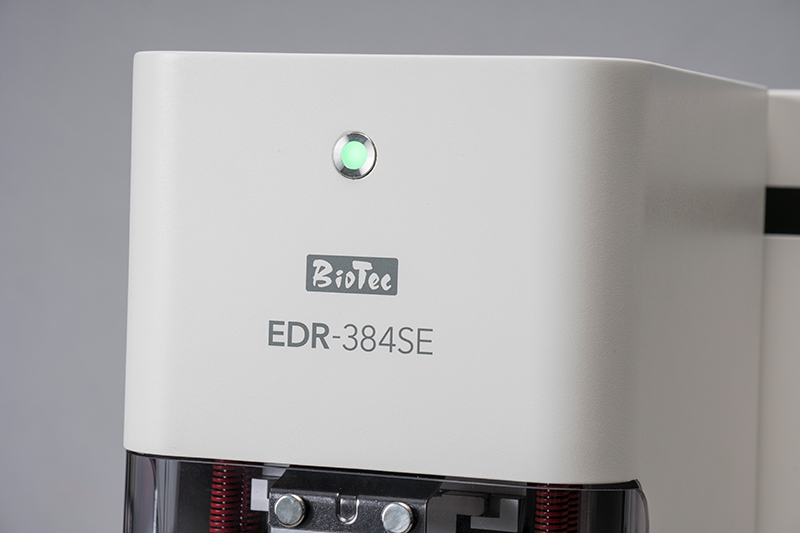

Equipped with an LED light, the operating status can be determined at a glance.

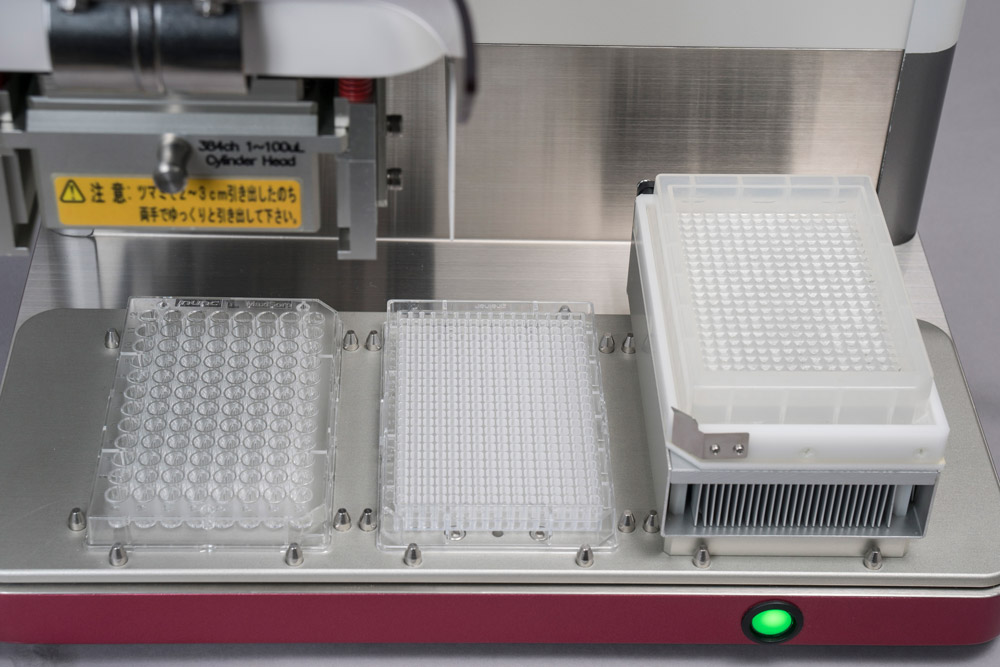

It can be linked to a wide variety of applications, including the installation of the Bio TEMP small Peltier temperature control unit, which was not supported by the previous model.
A service outlet is provided on the left side of the unit.
It can be used to power a stirrer, etc., and can be turned on/off by PC.

Dispensing system	96/384-ch independent cylinder system

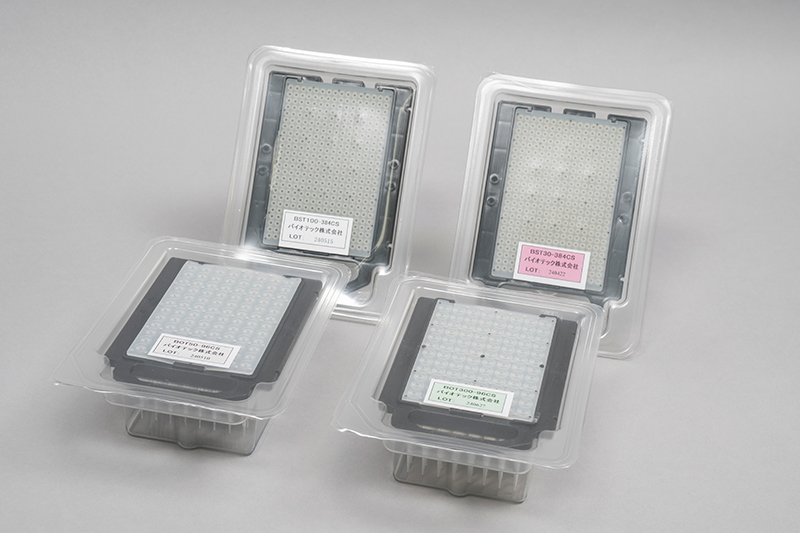

Head	96/384-ch disposable cassette type
Dispensing volume	1 – 300µL

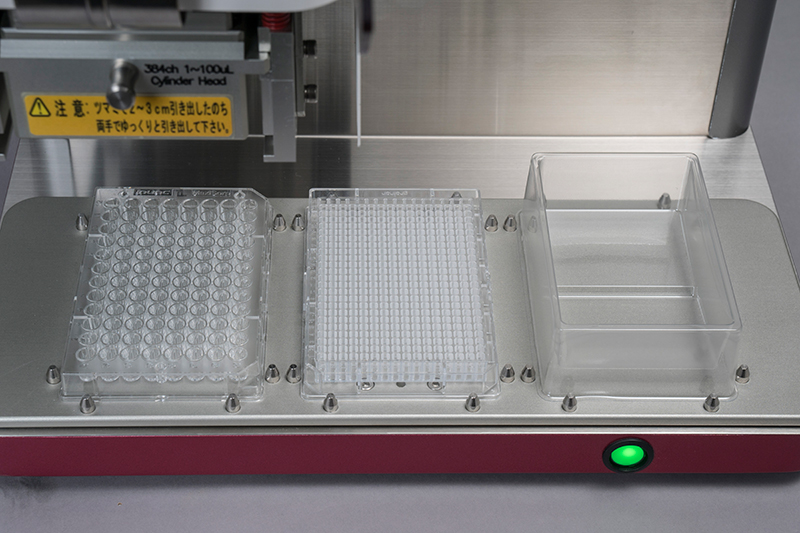

Compatible plates	Various 96/384 micro-well plates Deep well plates, PCR plates, etc.
Number of stages	3 stages
Accuracy	Within ± 2% (At the time of dispensing of 100 μL)
Dispensing precision	CV 3% or less (At the time of dispensing of 100 μL)
Power supply	AC100V 50/60Hz

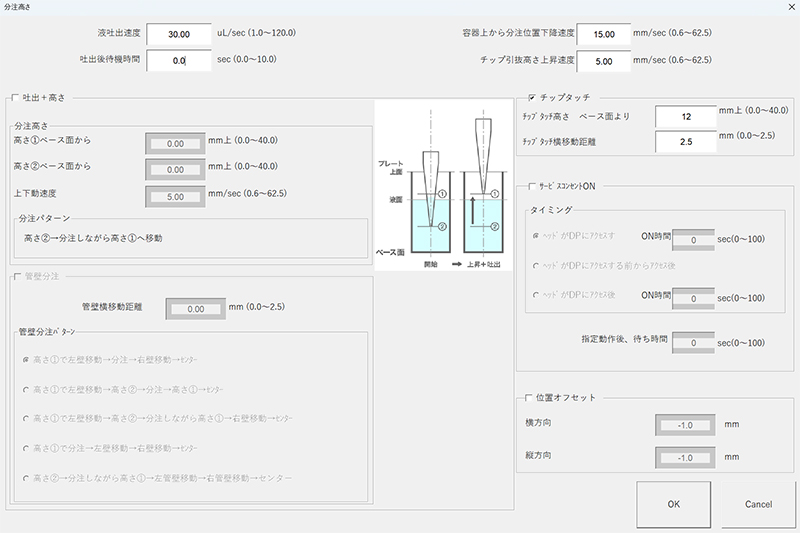

Control	Dedicated PC software (touch panel type)
Dimensions	W376mm×D315mm×H380mm
Weight	About 17 kg (Main unit only)

How long is the processing time?: The processing time is about 20 sec at 1:1 dispensing, but it depends on conditions.

Is it possible to medium exchange for cells that are easy to peel off?: Yes.This system has been used for the automation of medium exchange for HEK cells, which are very easy to peel off. Please finely set suction speed, tube wall suction, and other parameters to use this system for such purposes.
