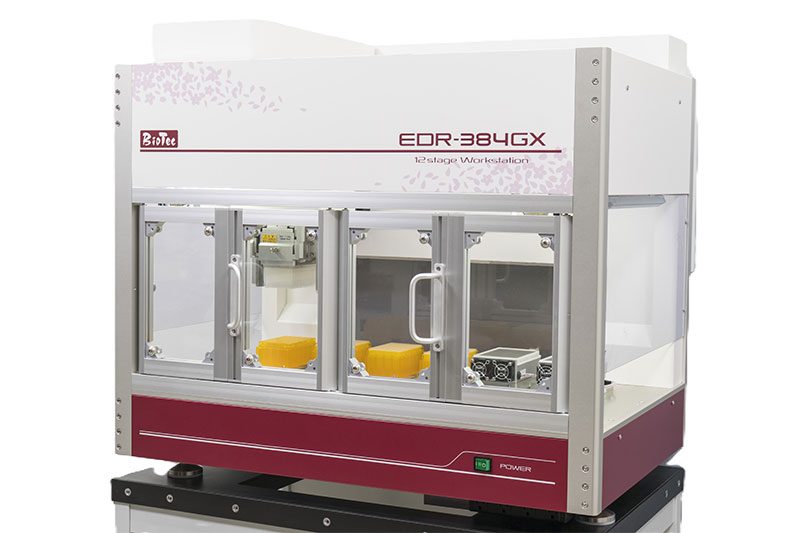

Liquid HandlerEDR-384GX

The flagship model of the EDR series is born.
High throughput has been achieved by improving the tip exchange speed and increasing the speed of the dispensing head.

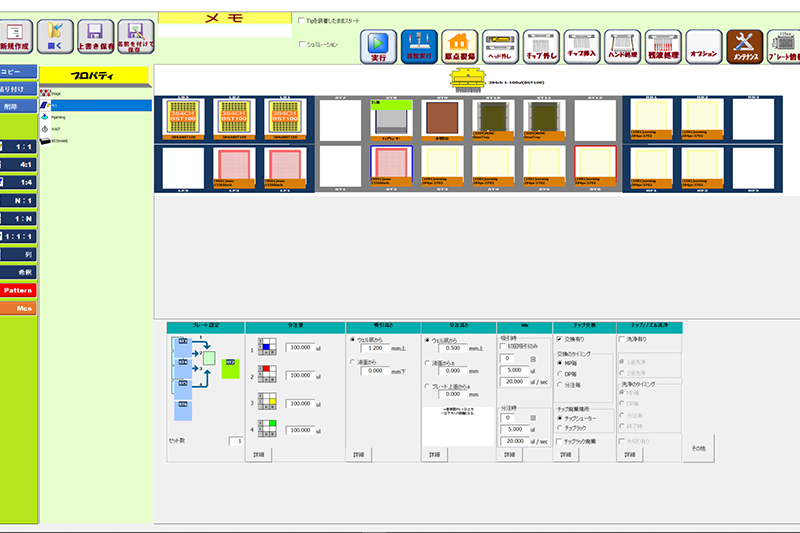

An easy-to-understand control program that can be linked with other systems.

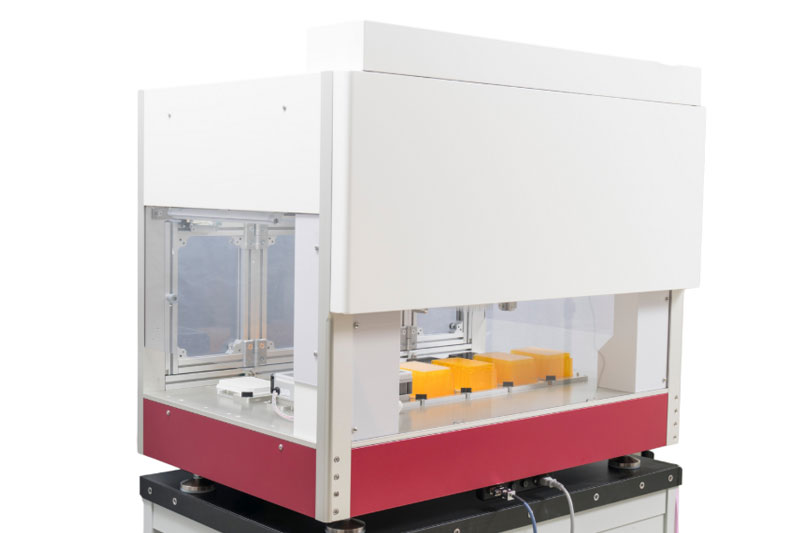

The product has a large opening, making it suitable for automation integration.

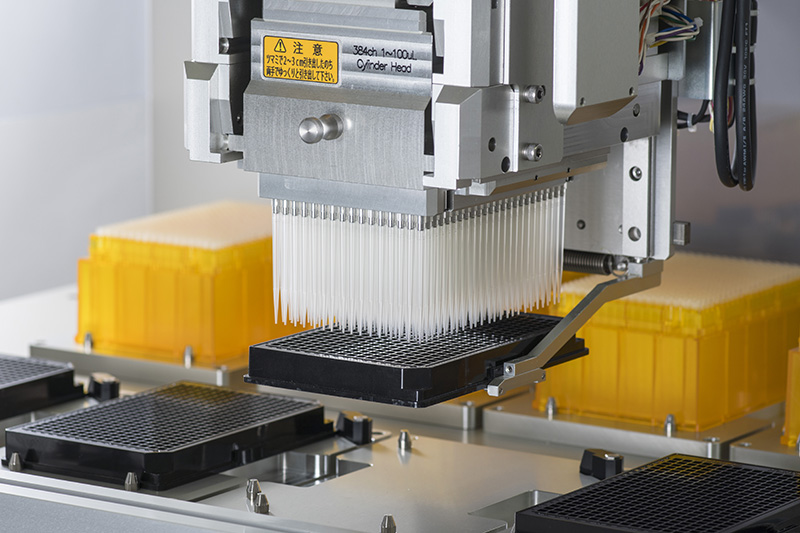

Dispensing head
The dispensing head and cylinder parts can be replaced with one touch.
The number of channels and dispensing range can be easily changed.
A new 96ch 10-1200μL head and a 384ch 1-100μL head have been added to the lineup.
Gripper
A plate gripper is standard equipment.
The newly adopted gripper shape has improved the stability of plate movement.
It can be used for applications such as opening and closing lids and solid phase extraction.
Stacker unit(Option)
Up to four triple stackers that can hold up to 100 microplates can be connected.
Options
The Peltier type compact temperature control unit BioTEMP and the magnet lift unit Mag Lift can be used for various assays.

Dispensing system	96/384-ch independent cylinder system
Head	96ch chip head,384ch chip head
Dispensing volume	0.1-1200µL
Compatible plates	Various 96/384 micro-well plates Deep well plates, PCR plates, BIOTEC Reservoir, etc.

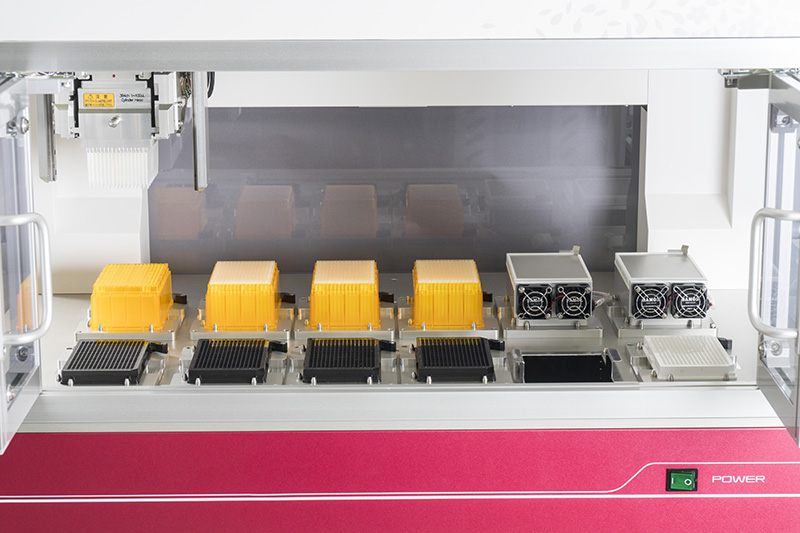

Number of stages	12 stages(Up to 4 stackers can be connected)
Power supply	AC100～240V 50/60Hz
Control	Dedicated PC software (GX)
Dimensions	W980mmxD680mmxH885mm　*W2024mm (when stacker is connected on both sides)
Weight	About 150 kg (Main unit only), About 3kg (1 stacker)

Cylinder head	Tips	Dispensing range
96ch 0.1~5µL	BST5-384S	0.1~5μL
96ch 1~50µL	BOT50-96S BOT50-96FS BST10-384S BST10-384FS BST100-384S BST100-384FS	1~50μL 1~50μL 0.5~50μL 0.5~50μL 0.5~50μL 0.5~50μL
96ch 10~300µL	BOT300-96S BOT300-96FS	10~300μL 10~300μL
96ch 1~300µL double range	BOT50-96S BOT50-96FS BOT300-96S BOT300-96FS	1~50μL 1~50μL 10~300μL 10~300μL
96ch 10~1200µL	BOT1200-96 BOT1200-96S BOT1200-96FS	10~1200μL 10~1200μL 10~1100μL
384ch 0.1~5µL	BST5-384S	0.1~5μL
384ch 1~40µL	BST10-384S BST10-384FS BST100-384S BST100-384FS BOT50-96S BOT50-96FS	0.5~40μL 0.5~40μL 0.5~40μL 0.5~40μL 1~40μL 1~40μL
384ch 1~100µL	BST100-384S BST100-384FS BOT50-96S BOT50-96FS	0.5~100μL 0.5~90μL 0.5~50μL 0.5~50μL
384ch 0.1~40µL double range	BST5-384S BST10-384S BST10-384FS	0.1~5μL 0.5~40μL 0.5~40μL

Are plates with lids available?: The lid can be opened and closed automatically using the gripper before and after dispensing.

Can plates with lids be set on the stacker?: Most plates with lids can be set, and the lids can be removed when feeding from the stacker.

Can it be incorporated into an automated system?: Yes, it can. The device has a large opening, making it suitable for integration with other devices.

Is it easy to replace the dispensing head?: The dispensing head can be replaced with a single touch, and no tools are required.
