Liquid HandlerEDR-VS8/VS10

Multichannel Variable Pitch Sampling System: Specimen sampling/Reagent dispensing; ¥8,400,000

Choose from 8 and 10-ch models to meet your needs.
This model enables various layouts of plates, tube racks and containers suitable for your application.
You can also lay out a temperature control unit, bar code reader and other devices.
Dispensing head system with a small air gap for high-precision dispensing (10 – 1200 μl).
Sensors enable real-time tip mounting checks, liquid level detection, and detection of suction abnormalities.
A processing speed of 1000 samples per hour (8-ch model)

Dispensing system	8-ch/10-ch independent cylinder system
Dispensing volume	10 – 1100 µL

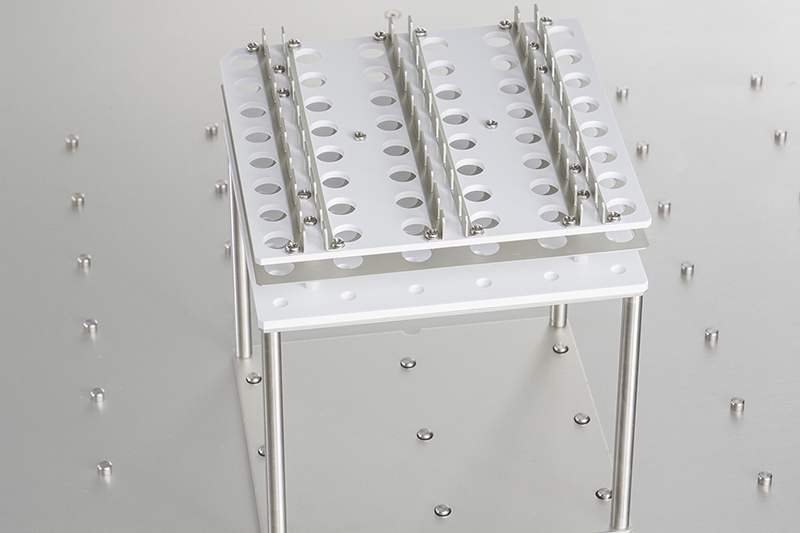

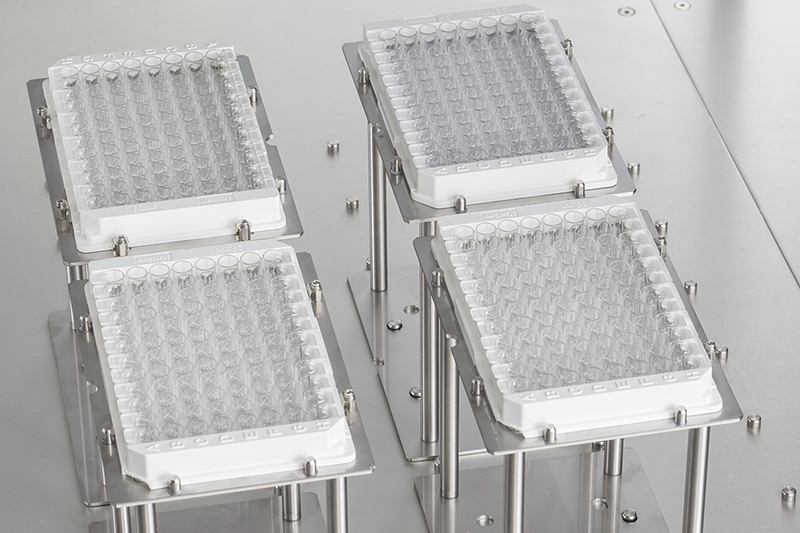

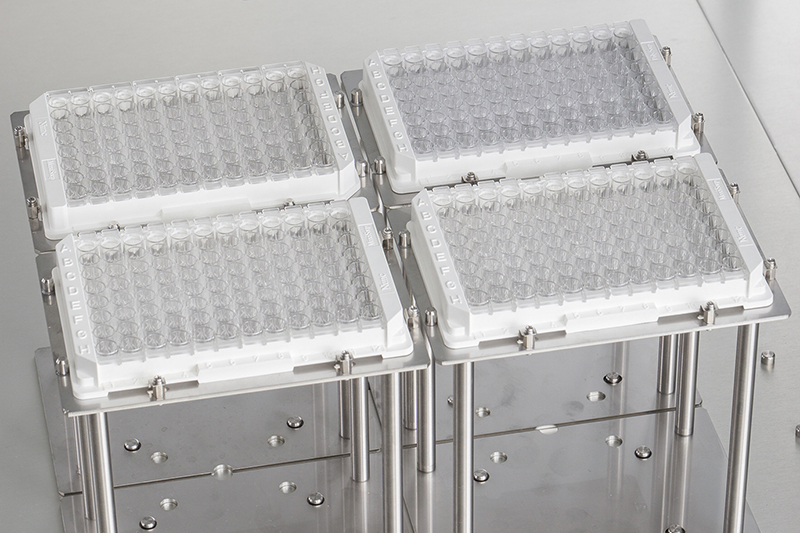

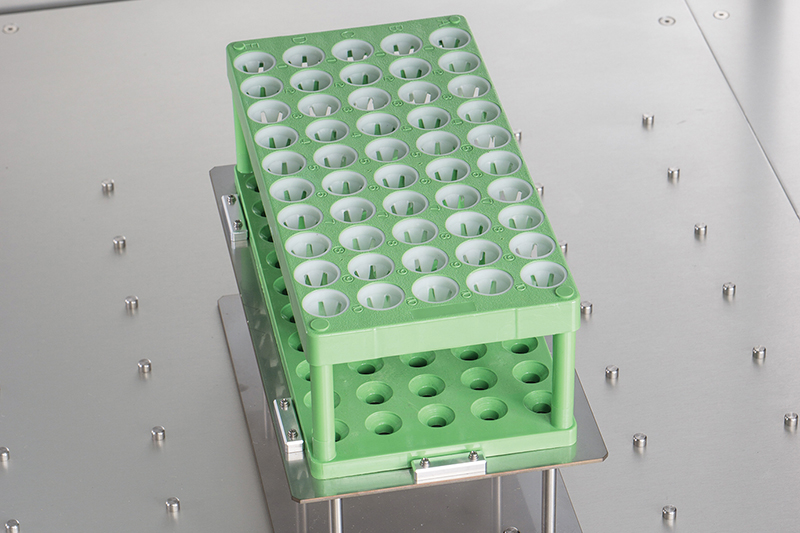

Compatible plates	Various 96 micro-well plates, deep well plates, PCR plates 1.5 mL/2.0 mL microtubes, blood collection tubes, centrifuge tubes, etc.
Dispensing precision	1000 samples per hour (8-ch model)
Accuracy	100μl±2µL

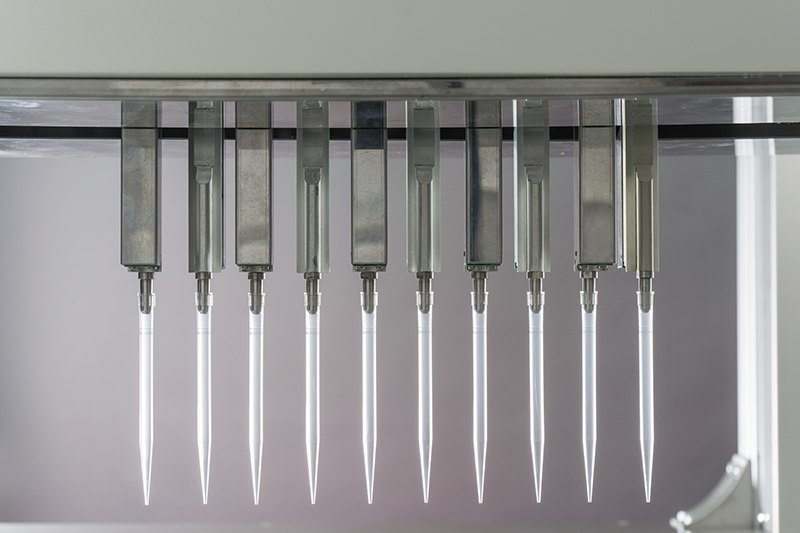

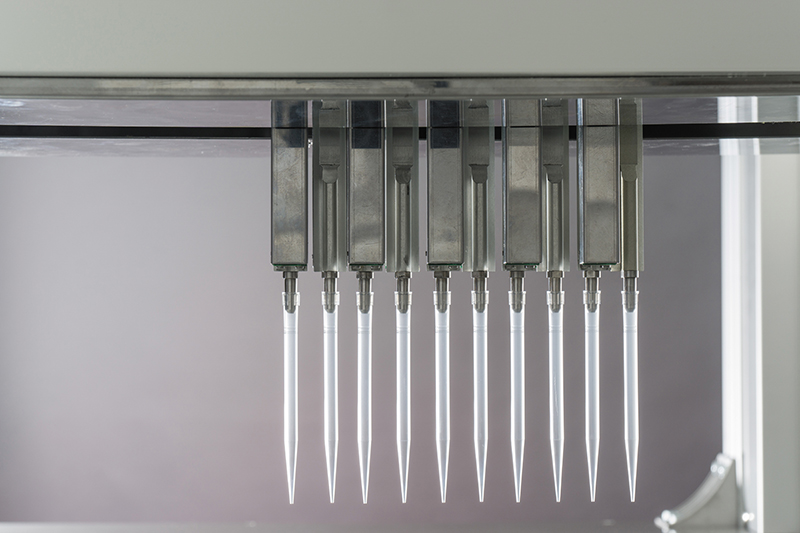

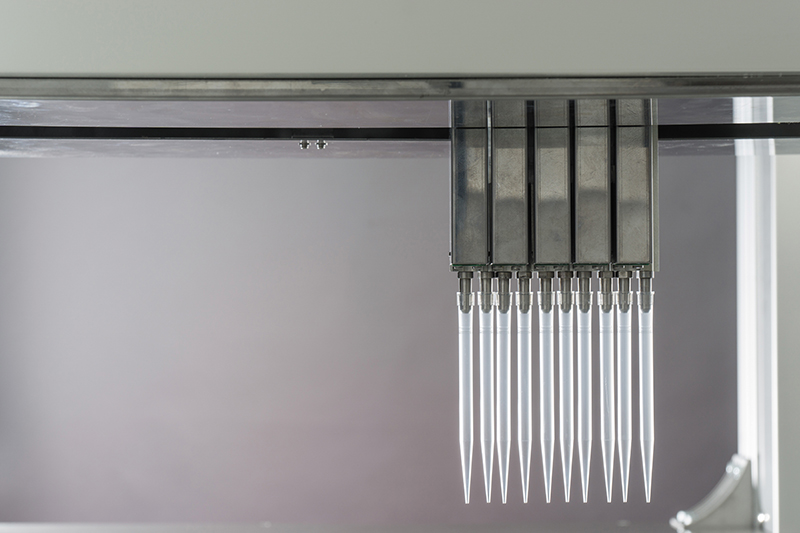

Pitch variable range	9～25mm
Power supply	AC100V 50/60Hz

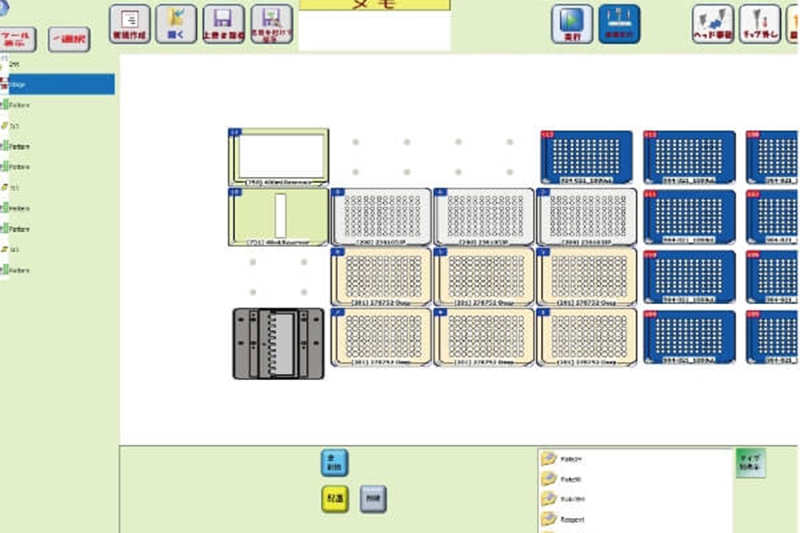

Control	Dedicated PC software (VS)
Dimensions	W1400mm×D900mm×H1200mm
Weight	about 190 kg

Cylinder head	Tips	Dispensing range
-	BOT1200-96 BOT1200-96S BOT1200-96FS	10~1100μL 10~1100μL 10~1000μL

What is the processing capacity?: 1000 samples per hour with 8-ch dispensing.(At a sampling speed without liquid detection where tips are exchanged every time. However, the rate varies depending on dispensing conditions.){3}

Are covers available?: They are available as options. You can select covers [with] or [without] HEPA filters.

Is this model equipped with error detection function?: Errors are issued when any of the following are detected during suction operation. (1) Complete idle suction (When there is no liquid from the beginning), (2) Half idle suction (When there is a shortage of liquid), (3) Clogging detection (When the tips are clogged), Other cases such as where there are no tips, and cases where jamming (a collision) occurs.

How are errors during suction detected?: A pressure detection system is used. (Carbon tips are not used.){3}

Should a dedicated PC be used?: The PC influences the processing speed, so please use a dedicated PC provided by our company.
