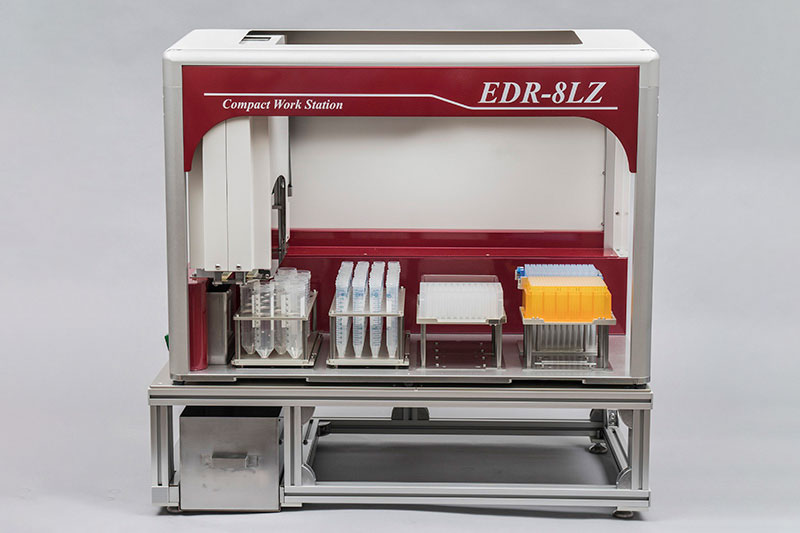

Liquid HandlerEDR-8LZ
- Compact 8ch variable pitch sampling system
- Starter Set(Main unit + PC +Plate stand )
- ¥5,500,000
- Compact design saves space and can be used in safety cabinets and clean benches.

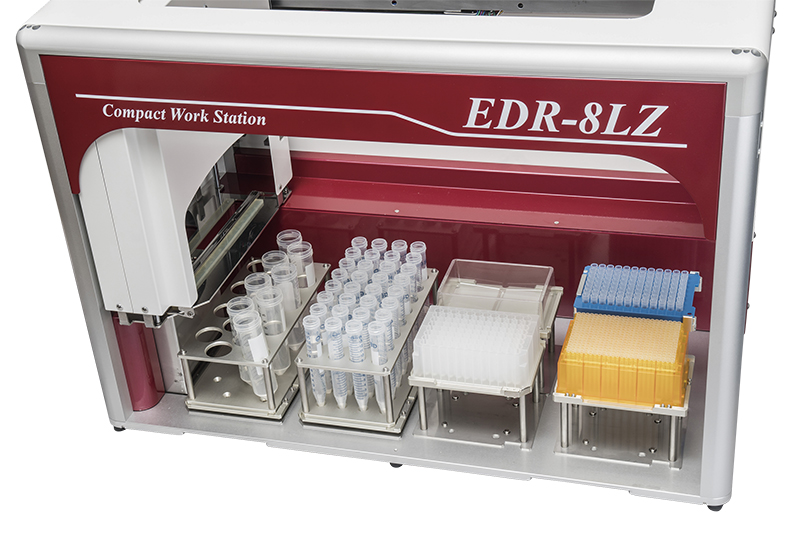

- Provides workspace for 8 microplates.

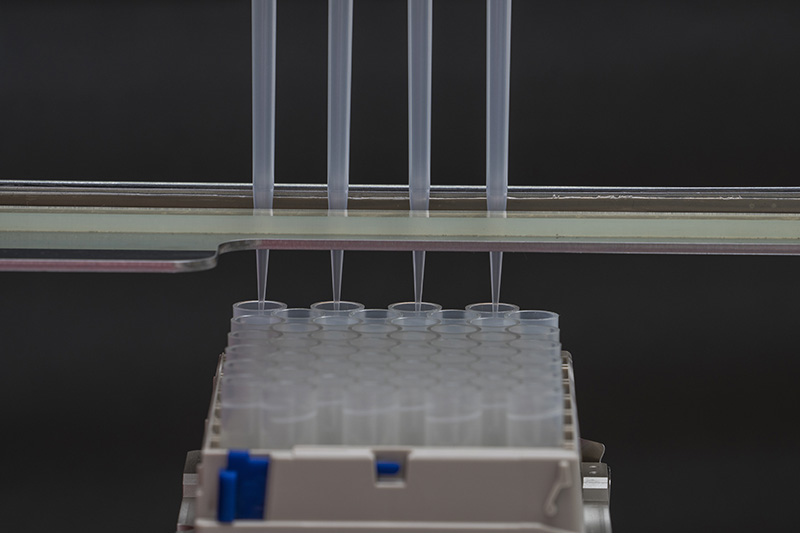

- Any number of channels from 1 to 8 can be adjusted from 9 to 25 mm in 0.1 mm increments.
- New “double range mechanism” enables high-precision dispensing from trace to large amounts without the need to replace the head.
- Equipped with liquid level detection function.

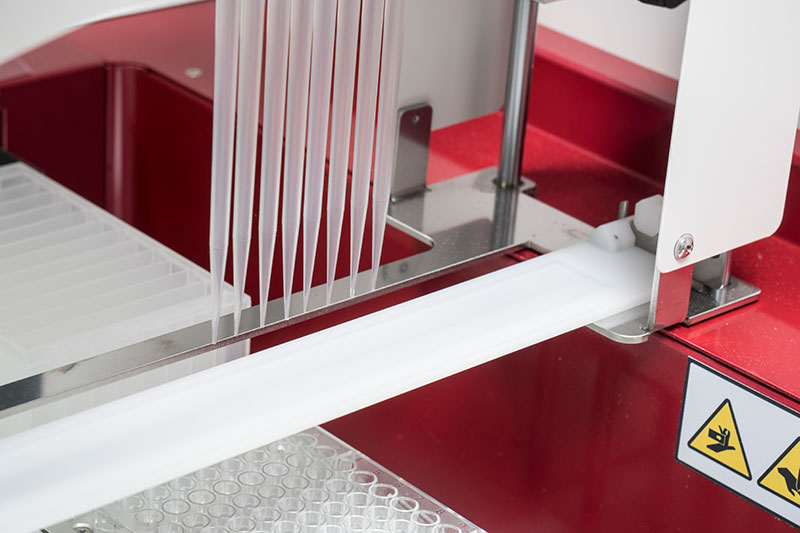

- Equipped with an anti-drip shutter.(option)
Related Applications
Key Specifications
| Dispensing system | Wide range type 8ch independent cylinder system |
|---|---|
| Dispensing volume | 1 – 1100 μL |

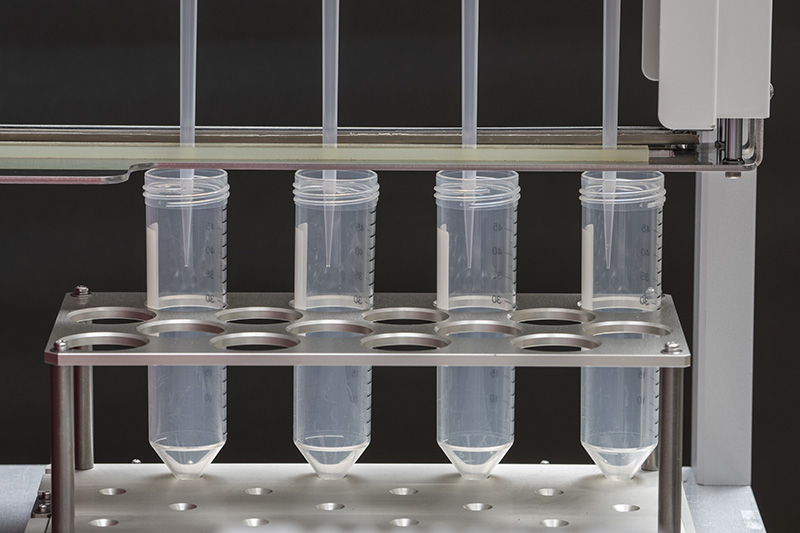

| Compatible plates | Various 96/384 micro-well plates, Deep well plates, PCR plates, 1.5mL/2.0mL micro tube, 15mL/50mL blood collection tube, Centrifuge tube etc. |
| Dispensing precision | CV 3% or less (At the time of dispensing of 100 μL) |
| Pitch Variable Range | 9-25mm |
| Power supply | AC100V 50/60Hz |

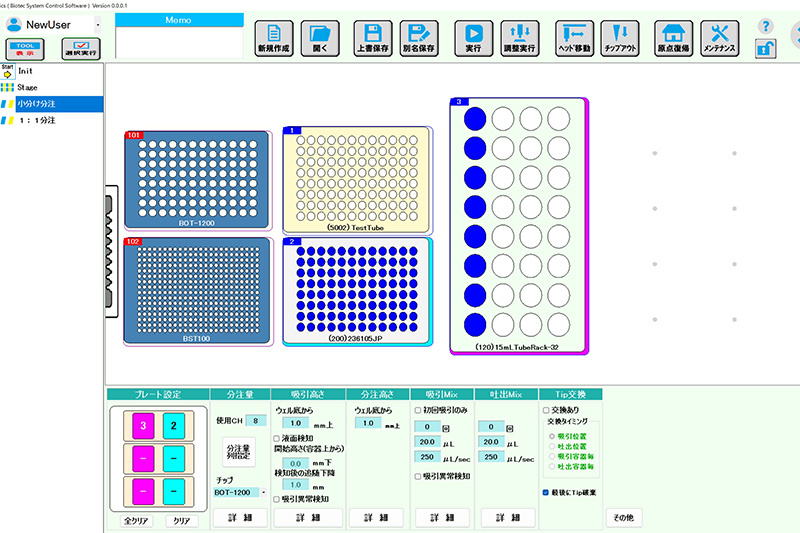

| Control | Dedicated PC software |
| Dimensions | W700㎜×D400㎜×H520㎜ |
| Weight | About 35 kg |

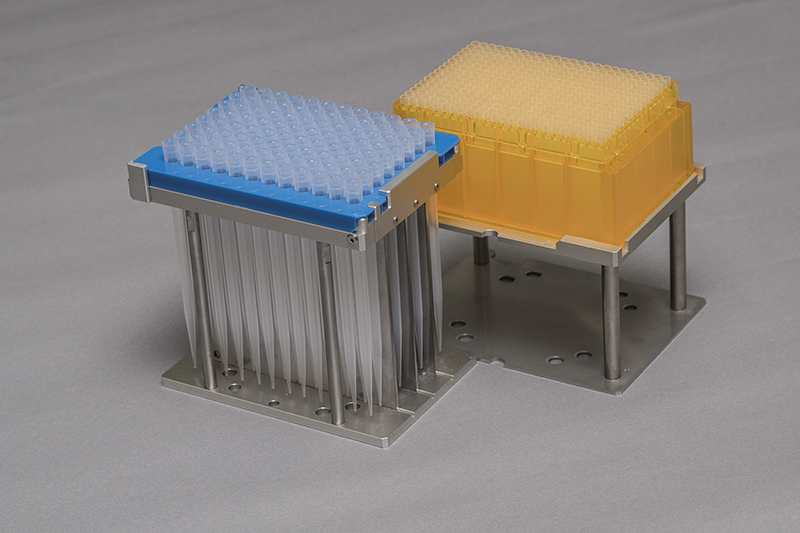

Cylinder head, Tips
| Cylinder head | Tips | Dispensing range |
|---|---|---|
| - |
|
|
Product introduction video
- Promotional Video(1:36 minutes explanation)
