Liquid HandlerEDR-24LX

Compact Workstation: 12-ch Starter Set (Main unit + PC + 12-ch head); ¥2,900,000

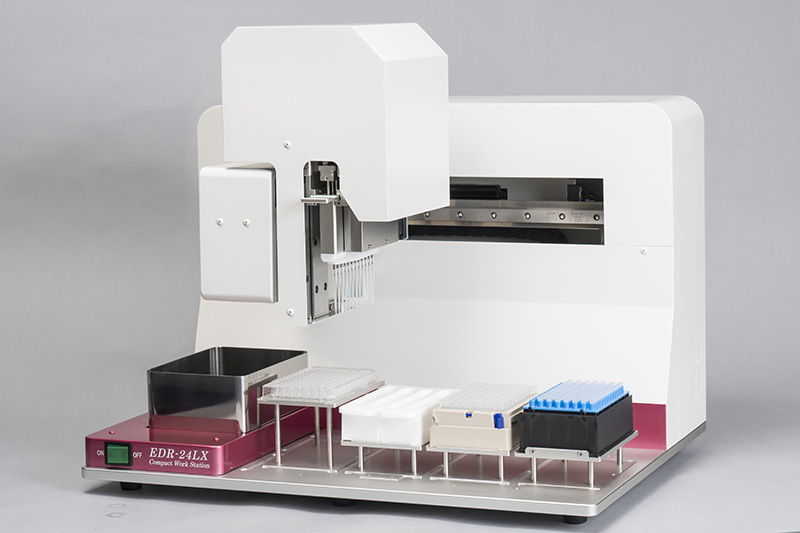

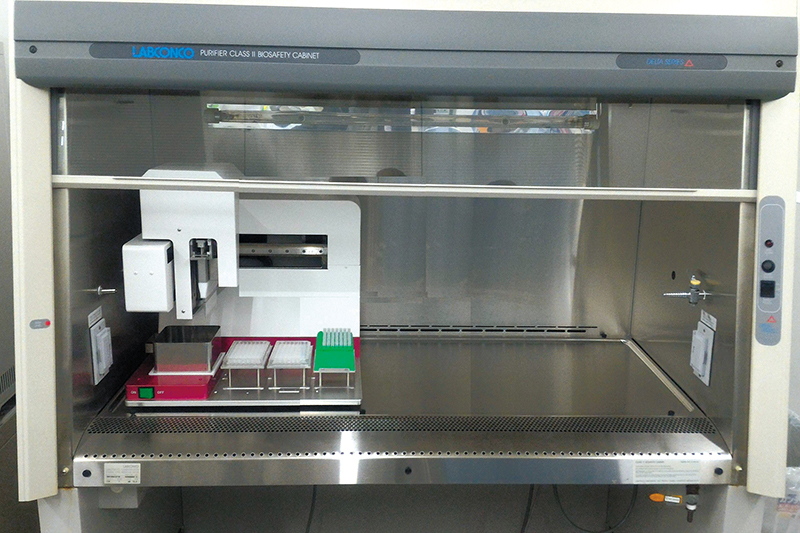

Compact Liquid Handler that can be easily installed on a clean bench or in a safety cabinet and removed when not needed.

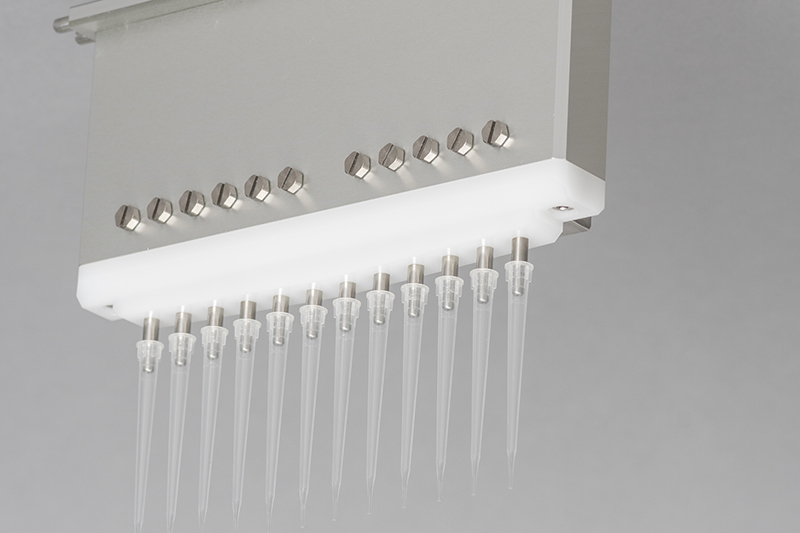

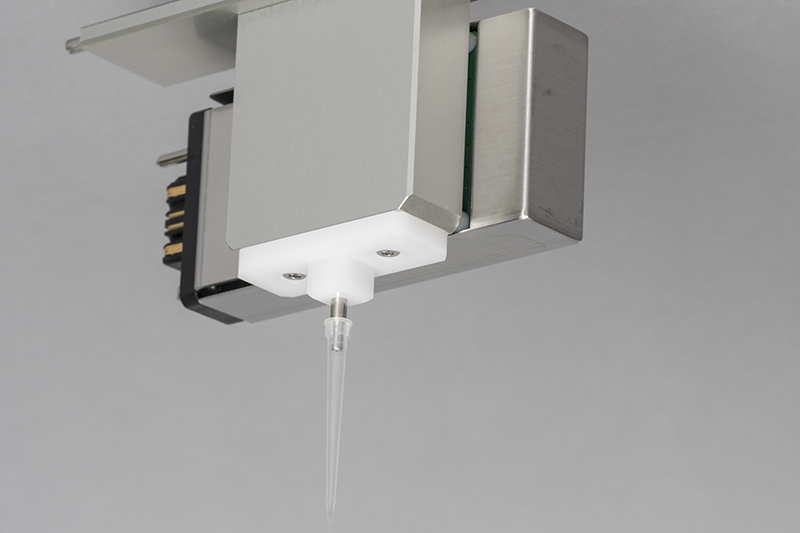

One-touch replaceable head.

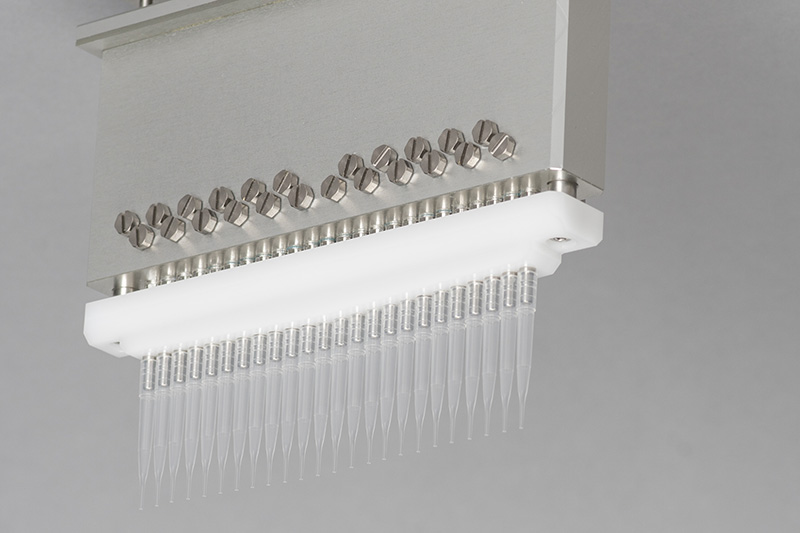

There are 6 types of heads with different numbers of channels: 1-ch, 6-ch, 8-ch, 12ch, 16-ch and 24-ch.
A wide dispensing range from 0.5 μL to 1000 μL that can be achieved by replacing the head.
This model is capable of handling various multi-dishes, microtubes, etc. as well as 96 and 384 plates.
All heads are equipped with pressure sensors for detecting liquid levels to ensure delicate manual suction operation, and for detecting clogging in tips to warn of problems during dispensing.
Easy operation is realized with dedicated control software and a touch panel PC.

Dispensing system	1/6/12 (8)/24 (16)-ch independent cylinder system (tip type)
Dispensing head	1-ch head (0.5 – 40 µL, 1 – 50 µL, 10 – 300 µL, 10 – 1000 µL) 6-ch head (10 – 1000 µL) 12-ch head (0.5 – 40 µL, 1 – 50 µL, 10 – 300 µL) Can be used as 8-ch head. 24-ch head (0.5 – 40 µL) Can be used as 16-ch head.
Dispensing precision	CV 3% or less (when dispensing 100 μL)
Compatible plates	96/384 micro-well plates, deep well plates PCR plates, 1.5 mL/2.0 mL microtubes, blood collection tubes, etc.
Number of stages	Plates placed crosswise: 4 stages Plates placed lengthwise: 4 stages *Plates should be placed only lengthwise for 1-ch head.
Power supply	AC100V 50/60Hz
Control	Tablet PC and dedicated control software
Dimensions	W 570 mm x D 430 mm x H 500 mm (Main unit only)
Weight	about 25 kg

Cylinder head	Tips	Dispensing range
Compatible with 1ch 0.5~40µL and 1ch 1~50µL	BOT50-96S BOT50-96FS BST10-384S BST10-384FS BST100-384S BST100-384FS	1~50μL 1~50μL 0.5~40μL 0.5~40μL 0.5~50μL 0.5~50μL
24ch 0.5~40µL	BST10-384S BST10-384FS BST100-384S BST100-384FS	0.5~40μL 0.5~40μL 0.5~40μL 0.5~40μL
Compatible with 12ch 0.5~40µL and 12ch 1~50µL	BOT50-96S BOT50-96FS BST10-384S BST100-384FS BST100-384S BST100-384FS	1~50μL 1~50μL 0.5~40μL 0.5~40μL 0.5~50μL 0.5~50μL
1ch/12ch 10~300µL	BOT300-96S BOT300-96FS	10~300μL 10~300μL
1ch/6ch 10~1000µL	BOT1200-96 BOT1200-96S BOT1200-96FS	10~1000μL 10~1000μL 10~1000μL

What is the sampling speed?: 180 samples per hour with 1-ch dispensing. (The time varies depending on dispensing conditions)

Can tubes other than plates be used?: You can register containers on the software, so tubes and special containers can be selected.

What types of detection functions is this system equipped with?: The detection functions can detect liquid levels, clogging (clogging at the tips), tip mounting, jamming (collision), and other software errors.
