Liquid HandlerEDR-384SX

12-Stage Workstation

Capable of dispensing 0.1 µL

¥6,800,000

• Space-saving and low-price automatic dispenser with multiple functions

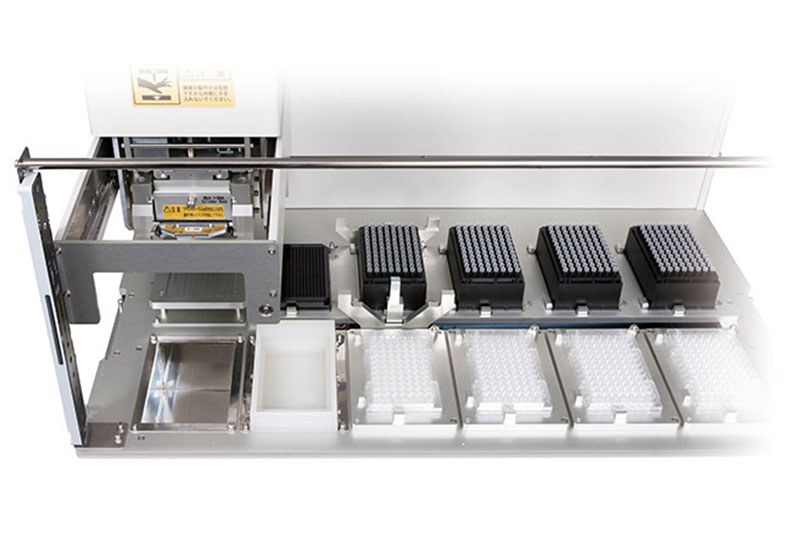

• Stage
  This stage can accommodate up to 12 micro-well plates and chip racks in total.

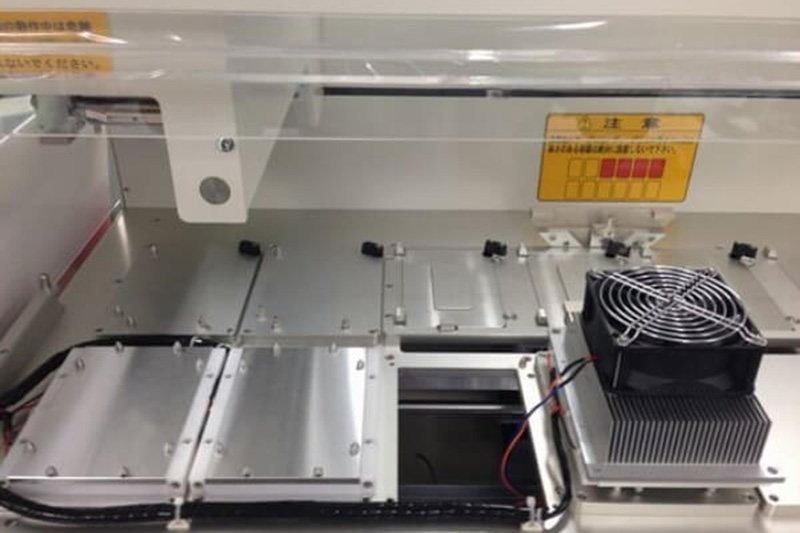

  The dispensing stage is compatible with various units such as tip racks and microwell plates, as well as Peltier temperature control units and washing tanks.

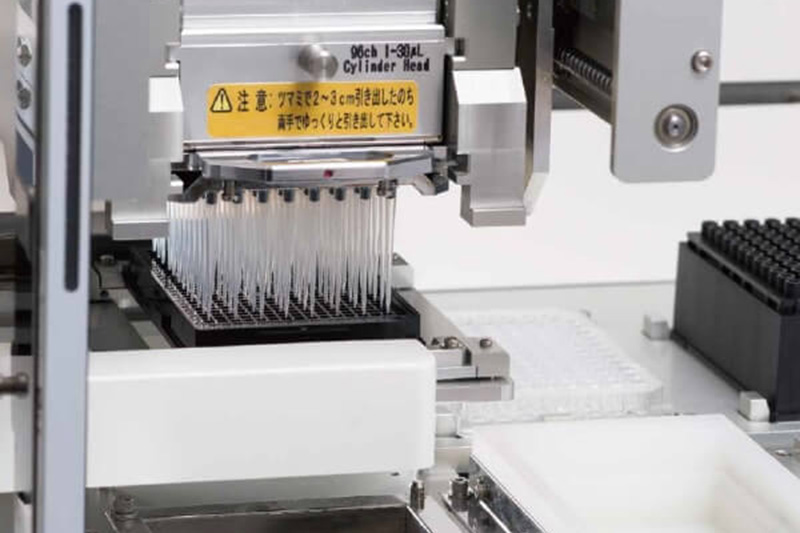

• Dispensing head
  One-touch replaceable dispensing head and cylinder.
  The number of channels and dispensing rate can be changed easily.
  The newly released 96-ch double range head to which both 1 – 50 µL chips and 10 – 300 µL chips can be attached.
  This apparatus can automatically consolidate four 96-well plates into one 384-well plate (4:1 dispensing).

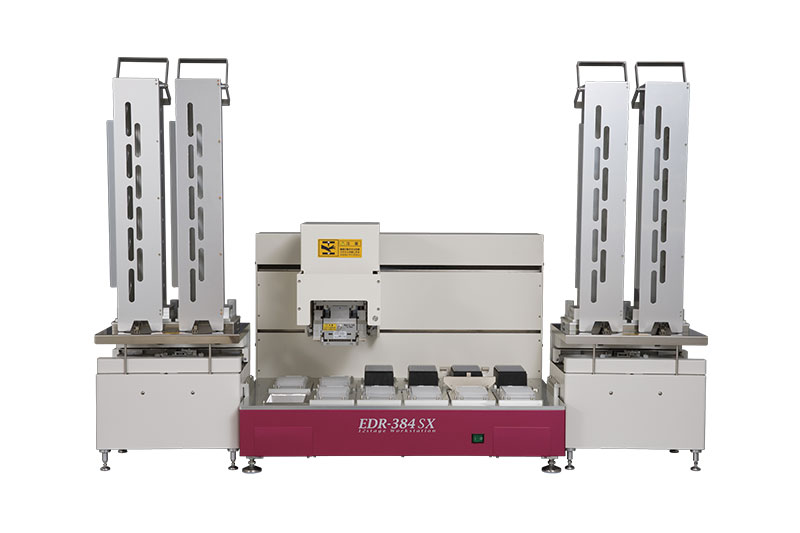

• Stacker unit
  This apparatus can be connected with up to two stacker units each of which can accommodate up to standard micro-well plates.
• Gripper
  A gripper that can handle plates can be attached to a dispensing head.
  By adding the plate transfer mechanism, the gripper can be used for operations to open/close lids and for solid phase extraction.
