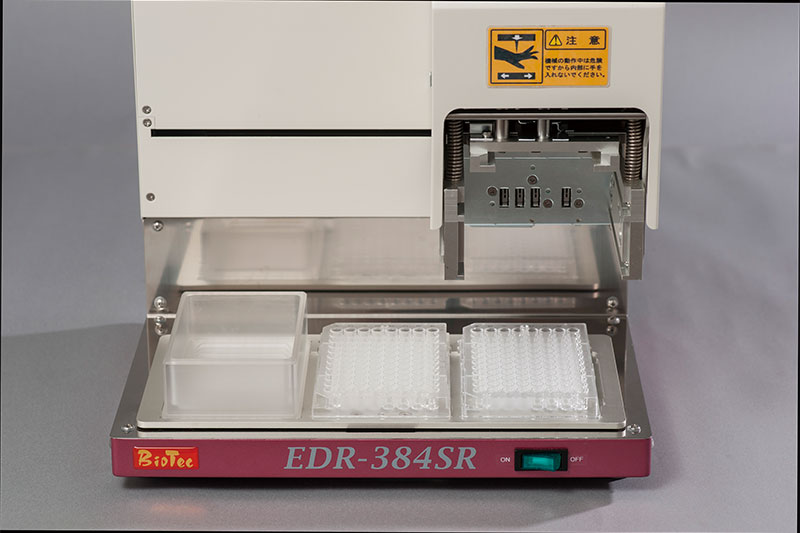

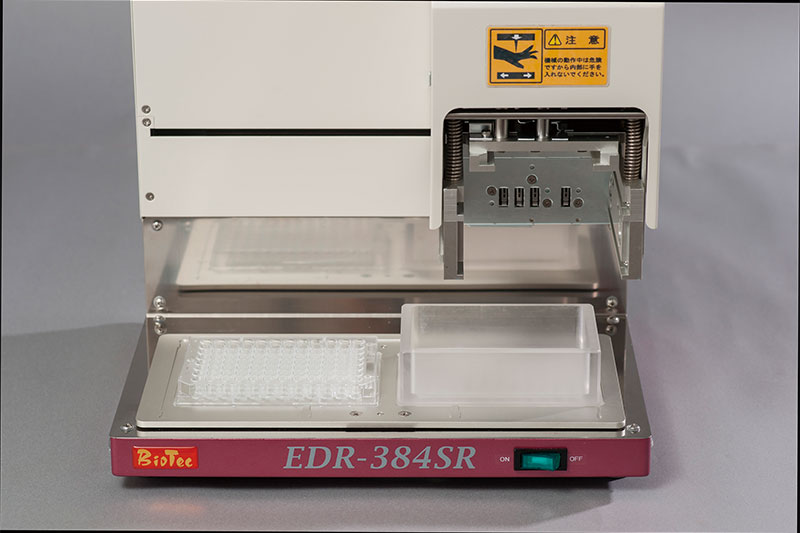

Liquid HandlerEDR-384SR

Benchtop Multi-Pipetter: 96-ch Starter Set(Main unit + PC + 96-ch head); ¥2,950,000

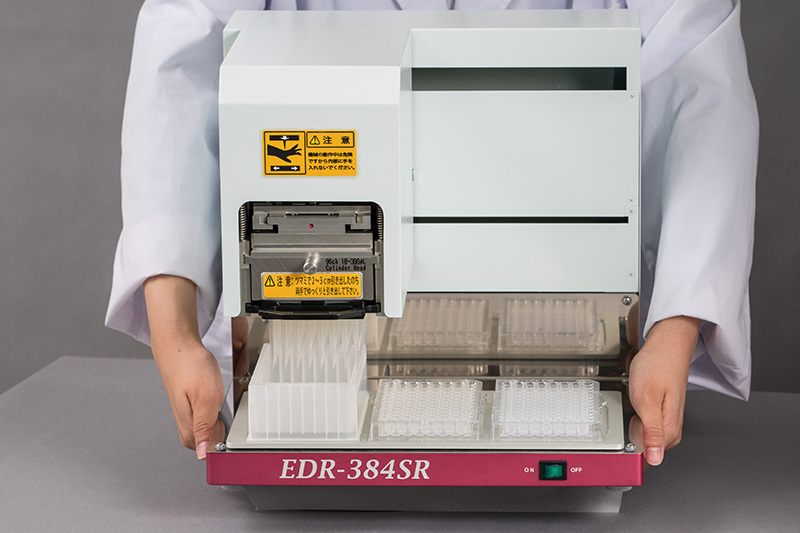

Compact system that can be installed on a clean bench.
Easy table-based operations, including dispensing of reagent to plates, transfer of samples and medium exchange.
High-speed operations with the 96/384-ch simultaneous dispensing.
The column processing head can perform both horizontal and vertical dispensing into plates.
Power outlets are provided on the left side of the main unit. They can be used as the power supply to stirrer and other devices, and can be turned on and off from a PC.

Dispensing system	96/384-ch independent cylinder system

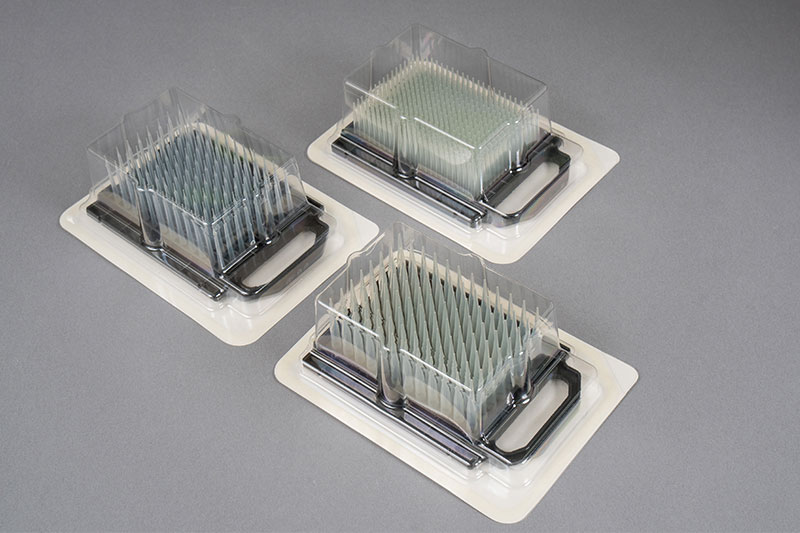

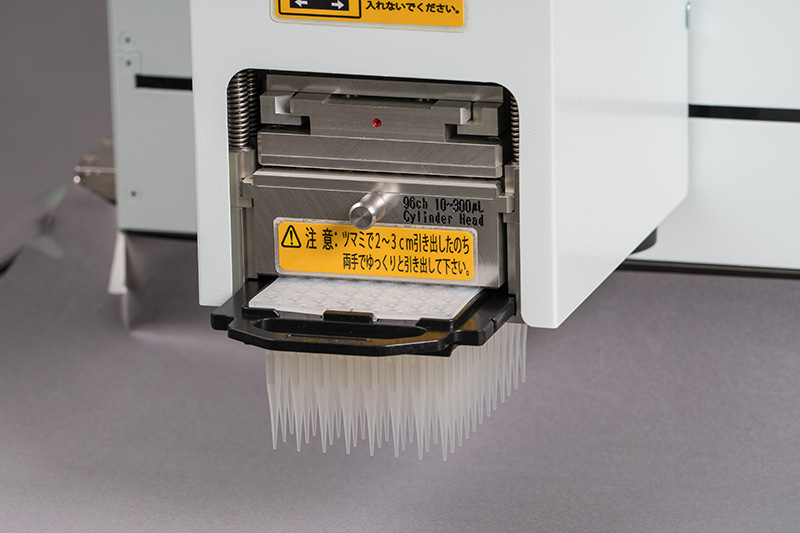

Head	96/384-ch disposable cassette type Colum processing tip holder type
Dispensing volume	1 – 300 µL
Compatible plates	Various 96/384 micro-well plates deep well plates, PCR plates, etc.
Number of stages	3 stages (when plates are placed lengthwise
Accuracy	Within ± 2% (At the time of dispensing of 100 μL)
Dispensing precision	CV 3% or less (At the time of dispensing of 100 μL)
Power supply	AC100V 50/60Hz

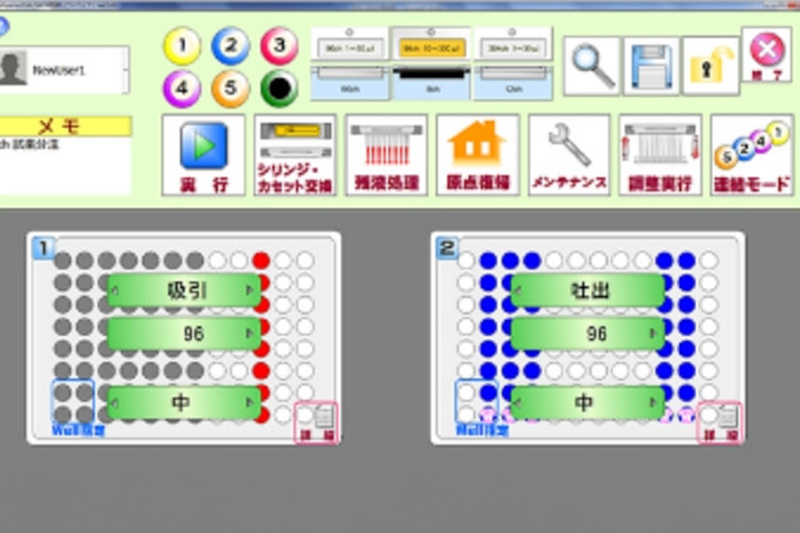

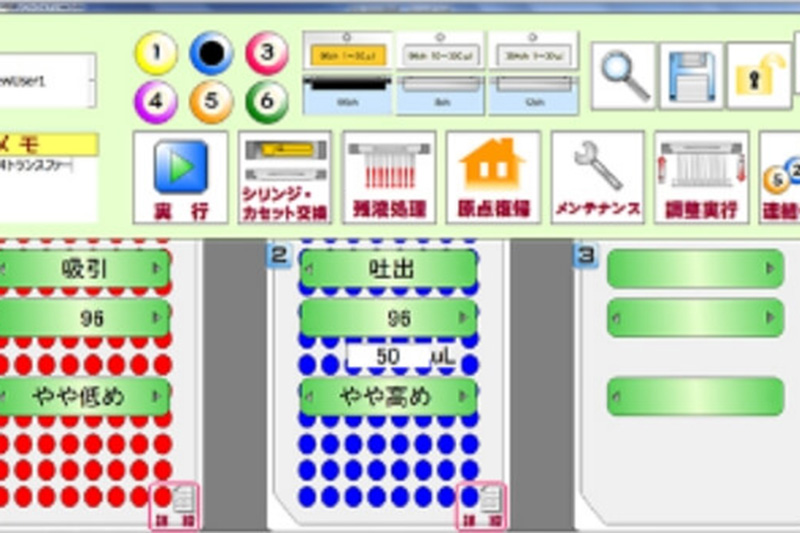

Control	Dedicated PC software (touch panel type)
Dimensions	W300mm×D290mm×H330mm
Weight	about 14 kg (Main unit only)

When the system is installed in a safety cabinet, will it be affected by UV?: A The main unit of the system will not be affected, but if resin products (tips, cables, etc.) are exposed to UV for a long period of time, they may be affected.

How long is the processing time?: The processing time is about 20 sec at 1:1 dispensing, but it depends on conditions.

Is it possible to exchange media for cells that are easy to peel off?: Yes.This system has been used for the automation of medium exchange for HEK cells, which are very easy to peel off. Please finely set suction speed, tube wall suction, and other parameters to use this system for such purposes.
