Liquid HandlerEDR-700A

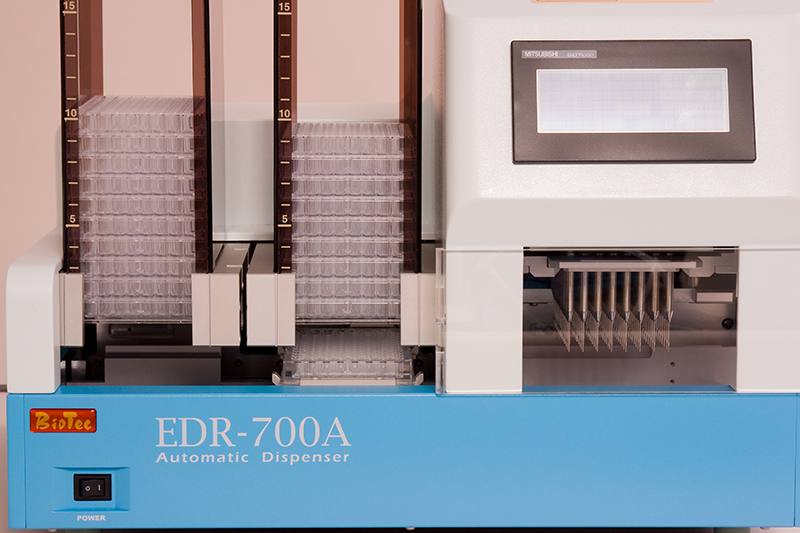

The EDR-700A is an autodropper that can simultaneously dispense using a 96-channel independent cylinder system.
In addition to the dispensing and suction mechanisms, the main unit is equipped as standard with a stacker and automatic reagent supply device, so you can complete a series of tasks without stopping throughput by simply setting the plate and reagents in advance.

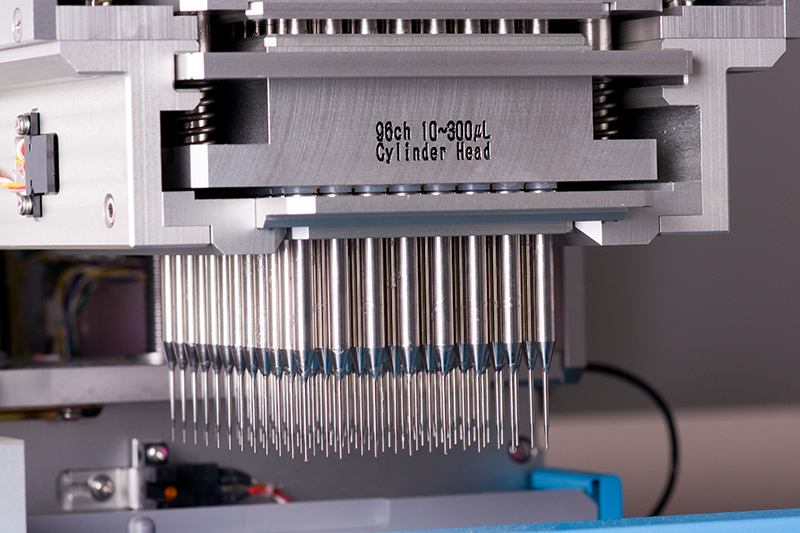

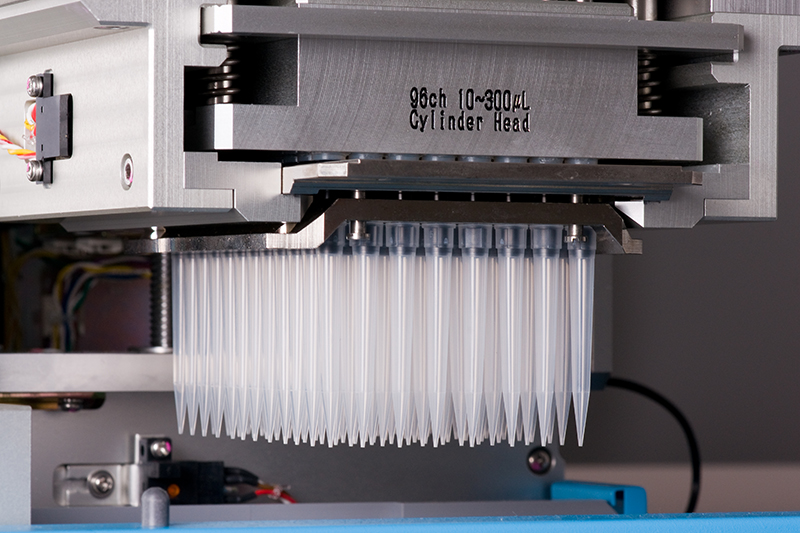

Depending on the application, you can select either a stainless steel nozzle type head or a disposable tip type head.
A touch panel system is used for operation, and the simple interface allows you to select various operations without confusion.

Dispensing system	96-ch independent cylinder system
Dispensing head	96ch nozzle type, 96ch tip type
Dispensing volume	1-300µL
Processing speed	Approx. 14 seconds/sheet (100µl contact dispensing, including transport)
Compatible plates	Various 96 micro-well plates
Stacker capacity	20 plates (can be added at any time)
Power supply	AC100V 50/60Hz
Control	LCD touch panel
Dimensions	W490mm×D450mm×H354mm

Cylinder head	Tips	Dispensing range
96ch 1~20µL	BOT-30HRS BOT-30HRFS	1~20μL 1~20μL
96ch 10~300µL	BOT-250HRS BOT-250HRFS	10~300μL 10~300μL

Is it possible to automatically replenish reagents?: Yes. An automatic reagent tank is included as standard, so you can automatically supply reagents in bottles, etc., and automate dispensing work.

What microwell plates are supported?: Compatible with various 96-well microplates. Deep type and lidded plates are not supported.

Can the metal nozzle head be autoclaved?: Yes. However, the O-ring that prevents the nozzle from falling out may deteriorate, so we recommend that you replace the O-ring regularly.
