Liquid HandlerEDR-384SX-6

6-stage Workstation released as a compact version of the popular 12-stage Workstation (EDR-384SX).

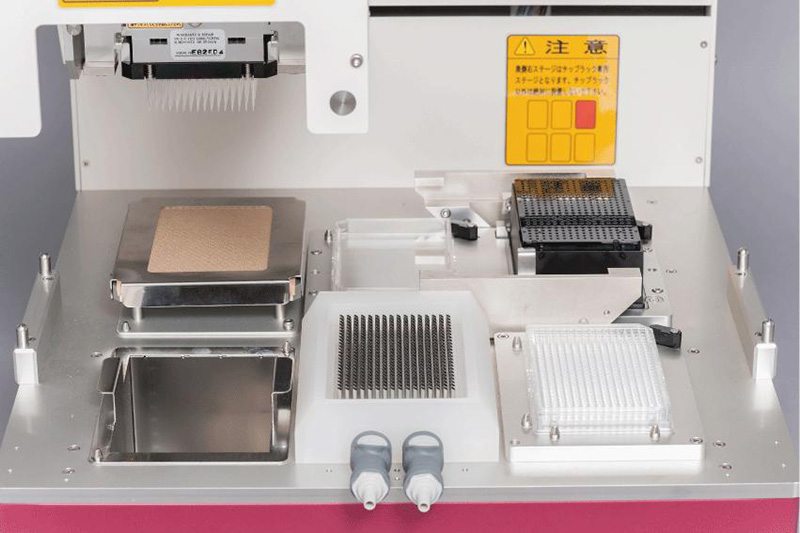

Stage
Stage that can accommodate micro-well plates and tip racks up to 6 pieces in total.
In addition to tip racks and micro-well plates, the dispensing stage can be used for various units like cleaning tanks.
Dispensing head
One-touch replaceable dispensing head and cylinder.
The number of channels and dispensing range can be changed easily.
The head is compatible with the 96-ch double range head to which both 1 – 50 µL tips and 10 – 300 µL tips can be attached.

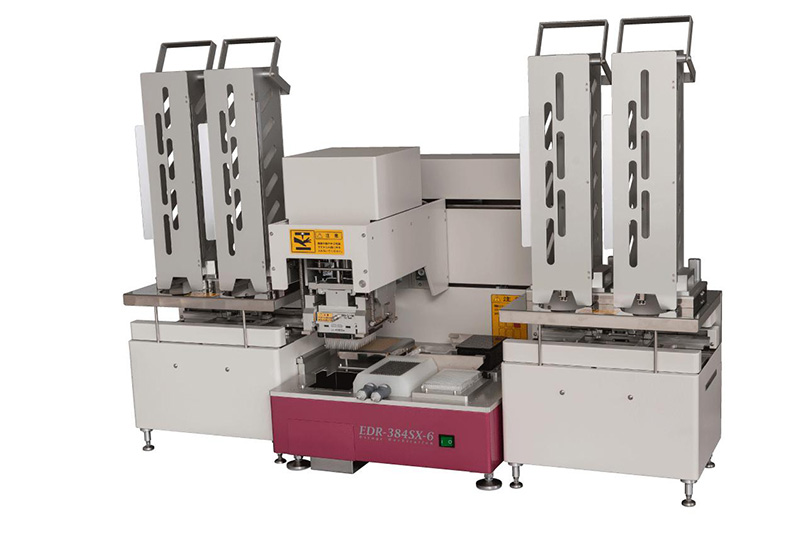

Stacker unit
This system can be connected with up to two stacker units each of which can accommodate up to standard micro-well plates.

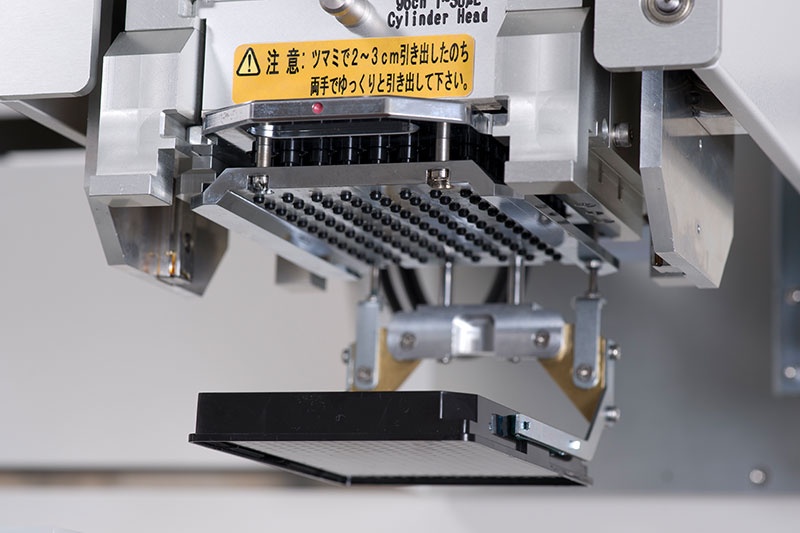

Gripper
A gripper that can handle plates can be attached to a dispensing head.
By adding the plate transfer unit, the gripper can be used for operations to open/close lids and for solid phase extraction.

Dispensing system	96/384/1536-ch independent cylinder system
Head	96-ch tip type head 96-ch double range tip type head 384-ch tip type head 1536-ch tip type head
Dispensing volume	0.1 – 300 µL
Compatible plates	Various 96/384/1536 micro-well plates, deep well plates, PCR plates, etc.
Number of stages	6 stages (8 stages at the maximum when connected with stackers on both sides)
Power supply	AC100V 50/60Hz
Control	Dedicated PC software
Dimensions	W500mmxD600mmxH650mm
Weight	about 80 kg

Cylinder head	Tips	Dispensing range
96ch 0.1~5µL	BST5-384S	0.1~5μL
96ch 1~50µL	BOT50-96S BOT50-96FS BST10-384S BST10-384FS BST100-384S BST100-384FS	1~50μL 1~50μL 0.5~40μL 0.5~40μL 0.5~50μL 0.5~50μL
96ch 10~300µL	BOT300-96S BOT300-96FS	10~300μL 10~300μL
96ch 1~300µL double range	BOT50-96S BOT50-96FS BOT300-96S BOT300-96FS	1~50μL 1~50μL 10~300μL 10~300μL
384ch 0.1~5µL	BST5-384S	0.1~5μL
384ch 1~40µL	BST10-384S BST10-384FS BST100-384S BST100-384FS BOT50-96S BOT50-96FS	0.5~40μL 0.5~40μL 0.5~40μL 0.5~40μL 1~40μL 1~40μL
384ch 0.1~40µL double range	BST5-384S BST10-384S BST10-384FS	0.1~5μL 0.5~40μL 0.5~40μL
1536ch 0.1~5µL	BST5-1536S	0.1~5μL

Can this system handle plates with lids?: Please use the option gripper to automatically open and close lids before and after dispensing operations.

Can the stacker accommodate plates with lids?: It can accommodate almost all types of plates with lids, and can also remove lids before supplying plates from the stacker.

Can this system be incorporated into an automated system?: Yes.It has been incorporated into automated systems in many cases.

Is it easy to change the dispensing head?: The dispensing head can be replaced with one touch without using any tools.
