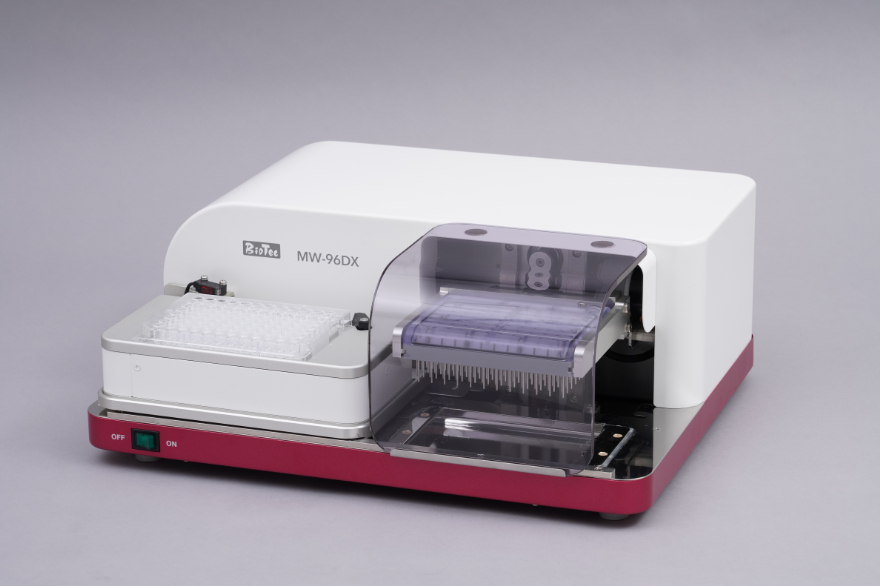

Microplate washerMW-96DX
- Compatible with 96/384 plates
New Advanced Microplate Washer - Price for main unit + control PC + complete set of bottles
- ¥2,650,000-
- Compatible with 96/384 well plates.
- No height adjustment required for 96 flat-bottom plates.
- Equipped with a standard ultrasonic nozzle cleaning function.

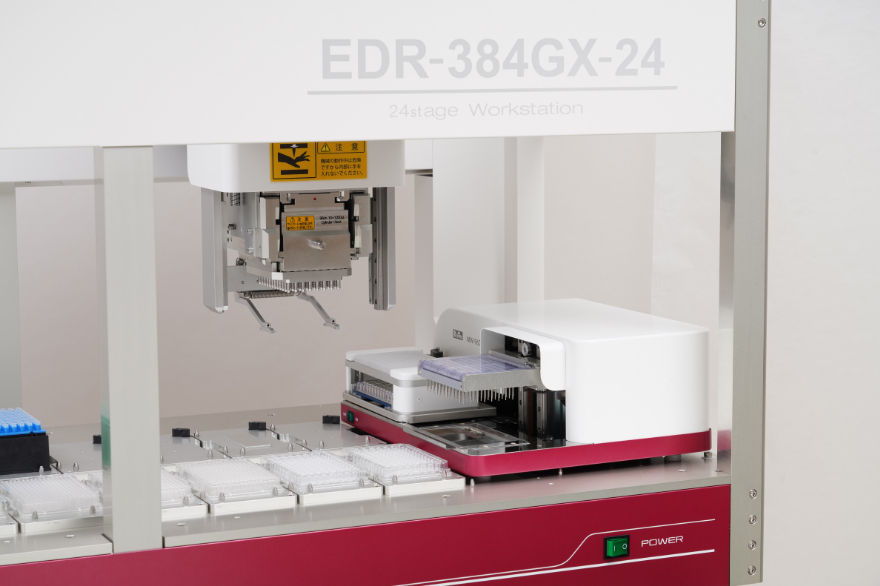

- Can be integrated with an automatic dispensing system.
- The control software is in Japanese, allowing intuitive operation via the included touch panel PC.

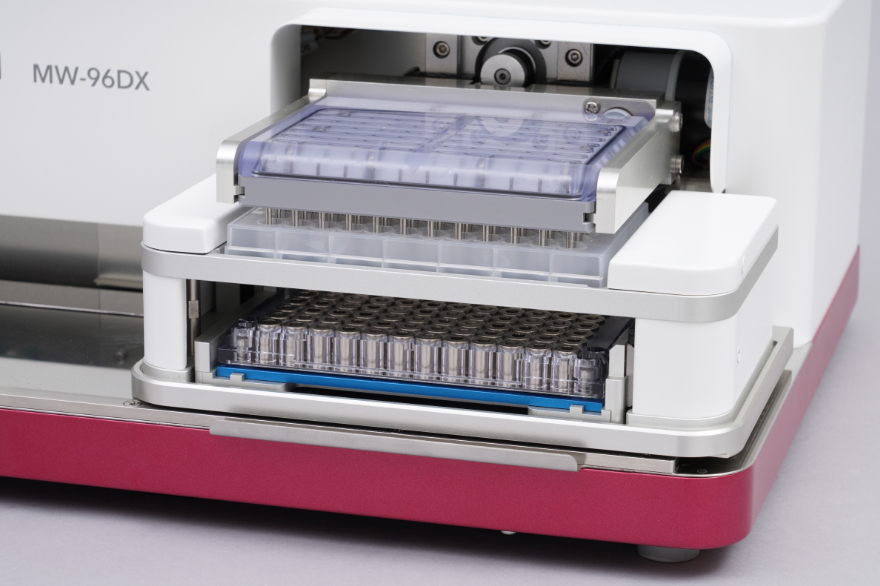

- Optional magnetic unit available, compatible with ELISA and magnetic bead assays using 96-well plates.(optional)

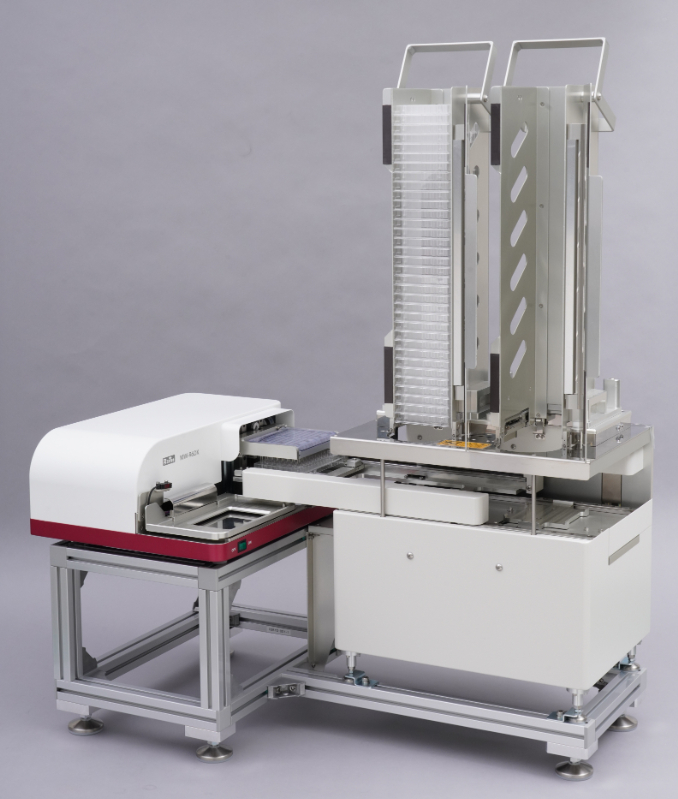

- With stacker connection, up to 50 plates can be processed. (optional)
Key Specifications
| Washing method | 96-well simultaneous washing |
|---|---|
| Head | 96ch double nozzle method |
| Dispensing volume | 50-999µL |
| Compatible plates | 96-well microplates
96-well PCRplates 384-well microplates |
| Washing cycles | 0-999 times |
| Number of programs | ∞ |
| Liquid delivery method | Built-in electromagnetic pump |
| Dispensing accuracy | ≦CV6.0% (when dispensing 100μl) |
| Residual volume | ≦1.5µL/well |
| Interval time | ∞ |
| Power supply | AC100V 50/60Hz |
| Main unit control | Touch panel PC |
| Dimensions | W410mm×D330mm×H160mm |
| Weight | About 16kg (main unit) |
Frequently Asked Questions
- How much liquid is needed for priming?
- About 380ml.
- How long does the cleaning operation take?
- It takes about 20 seconds for a cleaning volume of 300μL and 3 cleanings.
- Can it be used overseas?
- It only supports 100V, so a transformer may be required depending on the region.
- Is it compatible with automation?
- Yes.
- Is it compatible with IQOQ?
- Yes.
