AMW-8R | BIOTEC Co., Ltd. for Pipetting Systems Made in Japan

Microplate washerAMW-8R

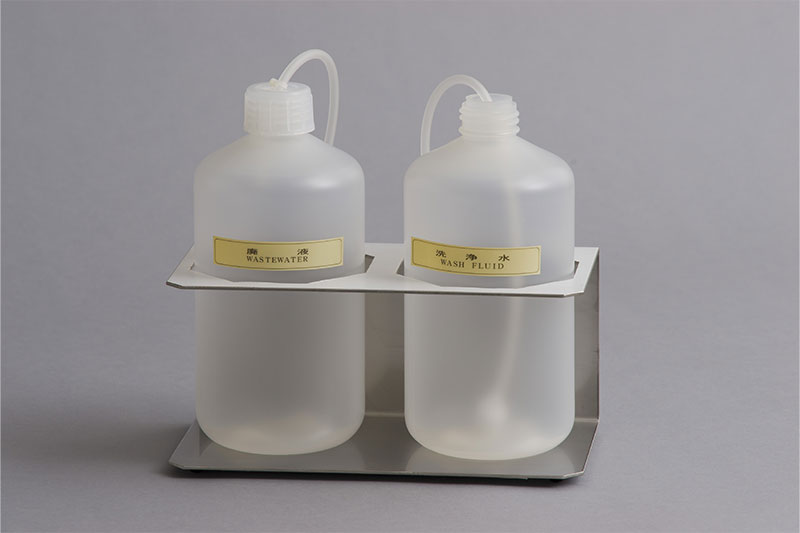

8ch row processing microwell plate washer: Equipped with a nozzle clogging removal mechanism Price for the main unit and bottles; ¥550,000

A small microwell plate washer for row processing (8ch simultaneous processing).

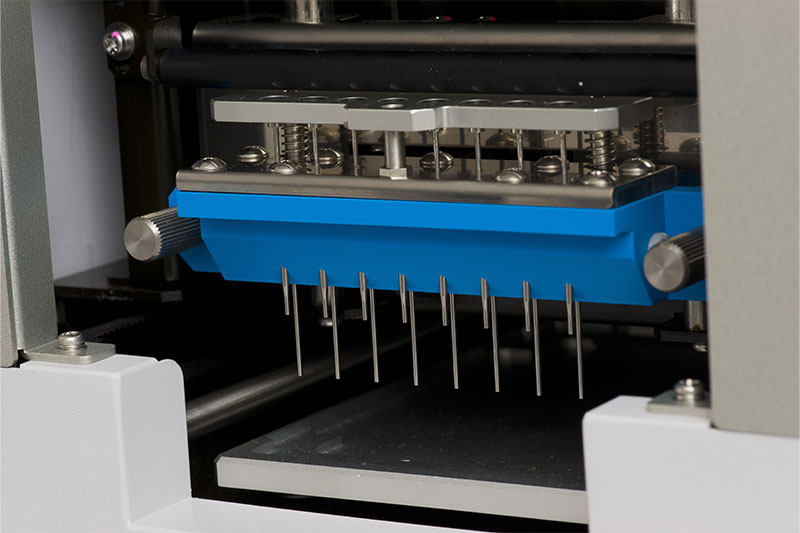

Equipped with a nozzle clogging removal mechanism as standard
A dispensing nozzle clogging removal head, which was previously only available on higher-end models, is now standard.
This mechanism prevents clogging of the dispensing nozzle.
Built-in dispensing and suction pump saves space

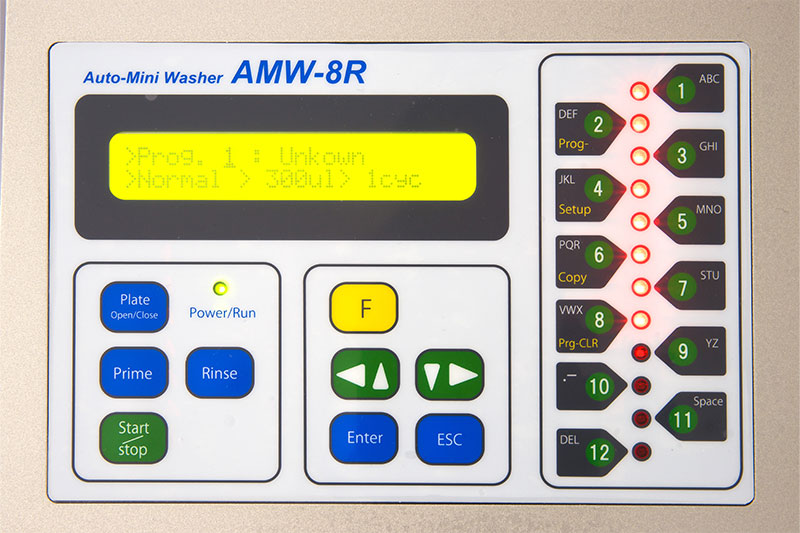

Easy-to-operate operation panel
The button-selectable operation panel allows intuitive operation.
Up to 99 program operations can be saved. Compatible with a variety of kits and plates.
The two-point suction function in the well minimizes residual aspirate.

Compatible plates	Various 96-well microplates
Head	8-row processing, dispensing and suction double nozzle system
Clog removal mechanism	Standard equipment
Number of stored programs	99
Operation modes	4 types
Washing cycles	1 to 20 times
Dispensing method	Air-liquid mixing pump (built into main unit)
Washing solution dispensed amount	50 to 5000 µL
Dispensing strength	3-stage adjustment
Dispensing accuracy	±CV5% when dispensing 300 µL
Suction method	Air-liquid mixing pump (built into main unit)
Suction position	2-point suction before and after the well
Liquid remaining accuracy	Less than 1.5 µL per well
Interval time	0 to 999 seconds
Mixing function	Standard equipment
Mixing time	0 to 999 seconds
Mixing time	3-stage adjustment
Power supply voltage	AC100V 50/60Hz
Control	16-bit CPU control
External dimensions	W210mm x D350mm x H250mm
Weight	About 8kg (main unit)

How long does it take to wash 12 rows 3 times?: About 3 minutes and 50 seconds.

Are there any consumables that need to be replaced regularly?: Nothing in particular. Replace filters and tubes when they become noticeably dirty.
