Microplate washerMW-96FR
- Compact type microplate washer
- 96-well simultaneous processing type Price for main unit + bottles
- ¥980,000
- Compact, low-cost 96ch simultaneous processing microplate washer.

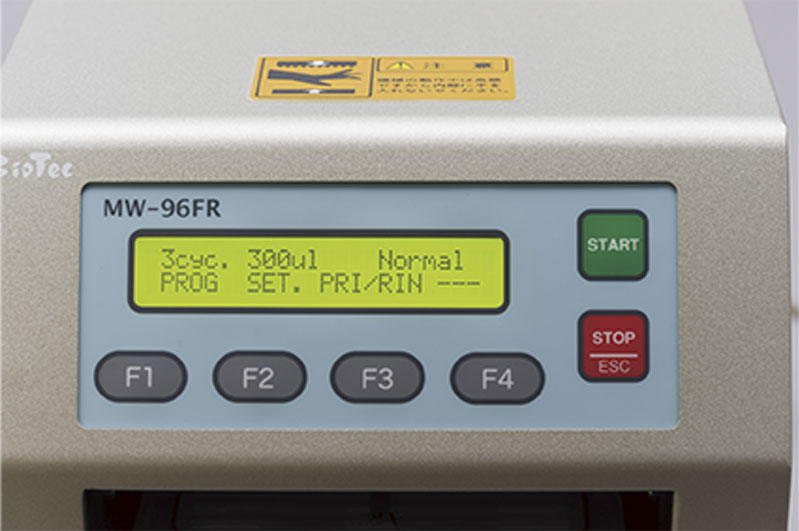

- Programming of various washing modes can be easily performed on the operation panel.
- Space-saving and lightweight, compact and space-saving.

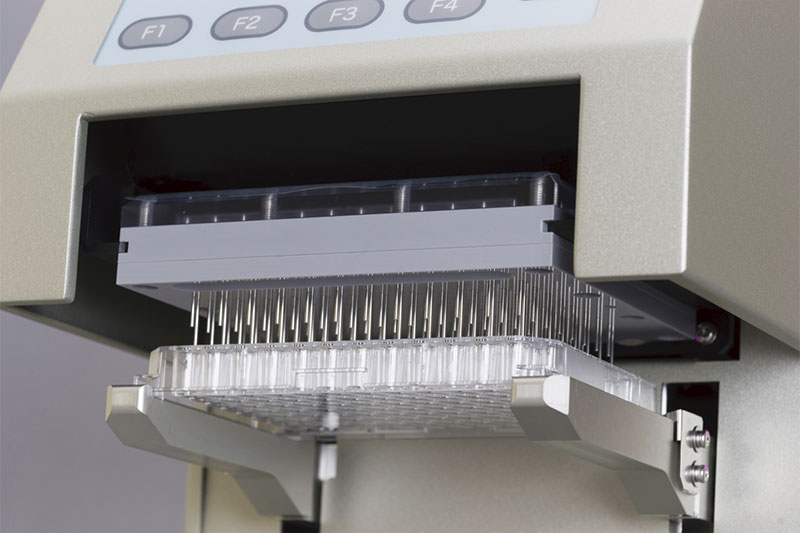

- Nozzle head is easy to attach and detach, making maintenance easy.
- Nozzle can be automatically rinsed.
- Dispensing strength settings can be selected.
- Up to four types of liquid can be dispensed by adding a switching valve (external/optional).
Key Specifications
| Washing method | 96-well simultaneous washing |
|---|---|
| Head | 96ch double nozzle method |
| Dispensing volume | 50-5000µL |
| Compatible plates | 96-well microplates |
| Washing cycles | 1-99 times |
| Number of programs | 1 |
| Power supply | AC100V 50/60Hz |
| External dimensions | W210mm x D290mm x H305mm |
| Weight | About 8.5kg |
Product introduction video
- (0:28 min explanation) "MW-96FR"
Frequently Asked Questions
- How long does the cleaning operation take?
- About 20 seconds for 300µL 3cyc.
- Is IQOQ compatible?
- Yes.
- How much liquid is needed for priming?
- About 350ml to 400ml.
- What types of plates are not compatible?
- V-bottom, round-bottom, and other types other than flat types are not supported.
