Microplate washerMW-96EX
- Microplate washer MW-96EX
- Equipped with nozzle clogging removal mechanism Price for main unit + bottles
- ¥1,750,000
- 96-well simultaneous processing allows for quick cleaning operations.
- Automatic operation and program editing can be easily controlled from the color touch panel.
- Up to 99 program operations can be saved, allowing for compatibility with a variety of kits and plates.
- The cleaning nozzle position can be easily adjusted using teaching.

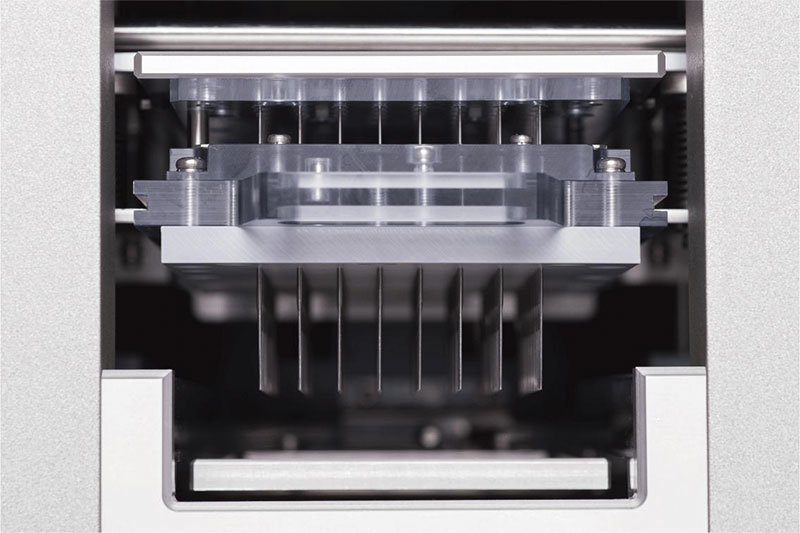

- The double nozzle system provides excellent reproducibility for dispensing and suction, reducing the effects of contamination.
Key Specifications
| Washing method | 96-well simultaneous washing |
|---|---|
| Head | 96ch double nozzle method |
| Dispensing volume | 50-999µL |
| Compatible plates | 99-well microplates |
| Washing cycles | 1-9 times |
| Number of programs | 99 |
| Liquid delivery method | Built-in electromagnetic pump |
| Dispensing accuracy | ≦CV6.0% (when dispensing 100μl) |
| Residual volume | ≦1.5µL/well |
| Interval time | Maximum 999 seconds |
| Power supply | AC100V 50/60Hz |
| Main unit control | Color touch panel |
| Dimensions | W232mm×D435mm×H232mm |
| Weight | About 14kg (main unit) |
Product introduction video
- (0:08 min explanation) "MW-96EX Nozzle clogged forced removal mechanism"
- (0:31 min explanation) "MW-96EX cleaning operation"
Frequently Asked Questions
- How much liquid is needed for priming?
- About 380ml.
- How long does the cleaning operation take?
- It takes about 20 seconds for a cleaning volume of 300μL and 3 cleanings.
- Can it be used overseas?
- It only supports 100V, so a transformer may be required depending on the region.
- Is it compatible with automation?
- Yes.
- Is it compatible with IQOQ?
- Yes.
