Microplate washerAMW-96SX
- Auto Cera Washer (96 well, for ELISA) AMW-96SX
- 96-well continuous automatic washing device for ELISA Price for main unit and bottles
- ¥3,300,000

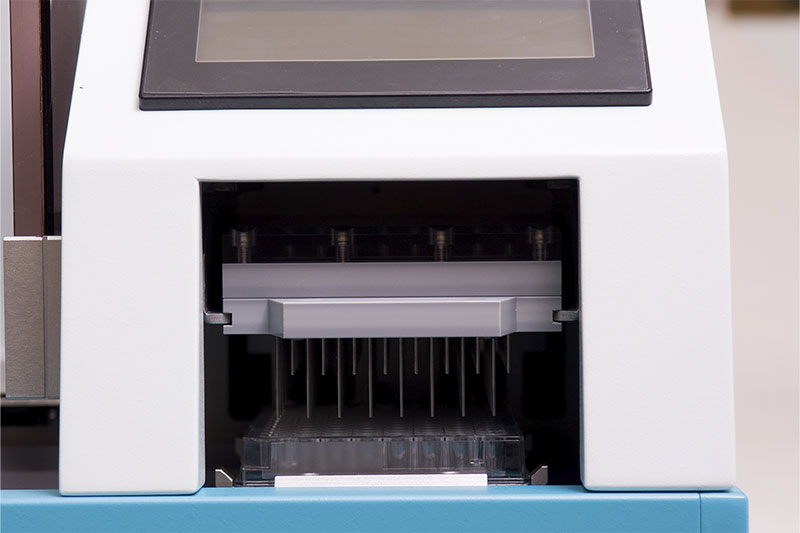

- This is a fully automated ELISA washing device that comes standard with a 96-well simultaneous washing head and a stacker. It has a high processing capacity that can handle everything from ELISA washing using a large number of plates to solid-phase plate manufacturing with just one machine.
- Plate supply mechanism:20 plates can be set at once, and more can be added at any time. It automatically stops when the plates run out.
- Adoption of double nozzle head: Since the dispensing and suction flow paths use separate nozzles, there is no need to worry about contamination and it has excellent reproducibility.
- Equipped with a variety of washing modes: In addition to the normal washing mode, it comes standard with a dispense end (with final dispensing), dispensing (only) mode, and suction (only) mode, so you can process according to your work environment.
- Two-point suction processing function: Since it suctions from both sides of the well, two suction processes are performed, so there is no liquid remaining on one side of the well after washing.
- Overflow washing function: Overflow washing is possible, where washing is performed while constantly suctioning at the top end of the well.
- One-touch rinse function: The head and sensor block can be washed with one touch using the rinse key.
- Wide variety of programs and parameters: Up to 30 types of washing programs can be stored in memory. Various washing conditions can be precisely handled.
- Dispensing and suction confirmation sensor (optional):
- Equipped with a sensor that monitors dispensing and suction failures caused by nozzle or pump problems, so you can be assured even when processing large quantities.
Key Specifications
Washing method | 96-well simultaneous washing, continuous processing |
---|---|
Head | 96ch double nozzle method |
Dispensing amount | 0-950µL |
Compatible plates | 96-well microplates |
Washing cycle | 1-9 times |
Number of programs | 30 |
Power supply | AC100V 50/60Hz |
Operation/display | LCD touch panel |
External dimensions | W440mmxD490mmxH260mm |
Weight | About 27kg |
Product introduction video
- AMW-96SX(1:19 minutes explanation)
Frequently Asked Questions
- How many liters does the waste bottle hold?
- The standard accessory is 5L, but a 10L bottle is available as an option.
- How do I adjust the height of the washing head nozzle?
- It is equipped with a real-time height adjustment function, and can be easily adjusted in 0.1mm increments.
- What is the processing capacity?
- 350µL x 3 washes, 20 plates processed, within 10 minutes (including plate transport) (varies depending on conditions)
