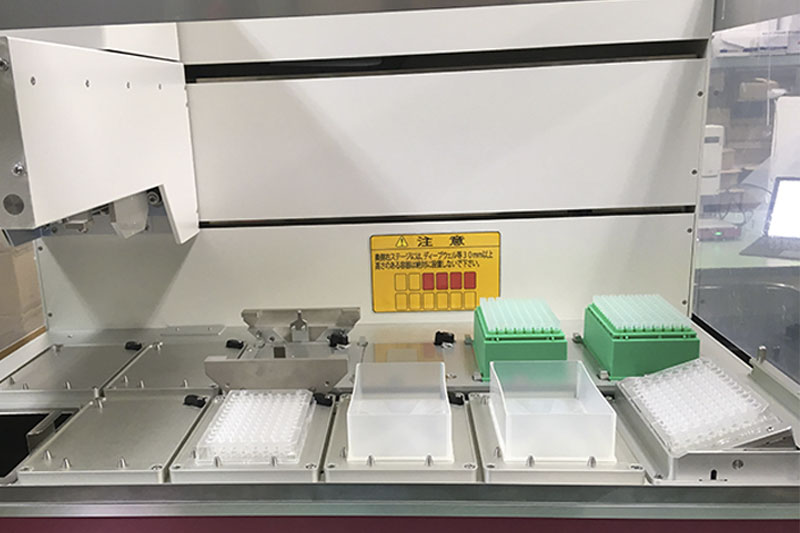

OptionsTilt plate stand unit
- Tilt plate stand unit + AC adapter price
- ¥600,000

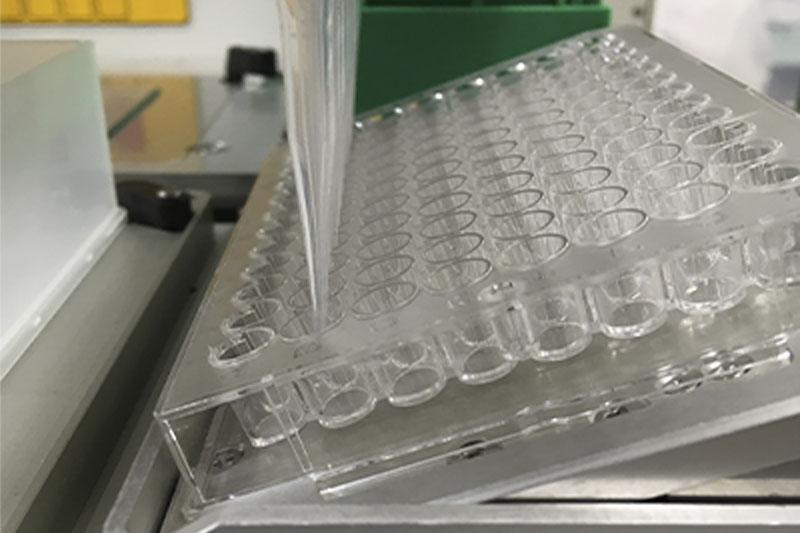

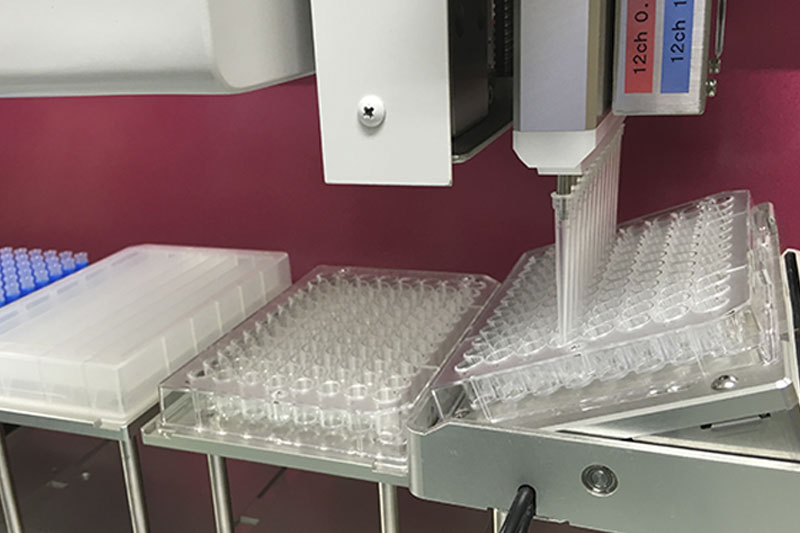

- By tilting the microwell plate, residual liquid during liquid suction can be minimized.
This is particularly effective when medium exchange. - The tilt angle can be set from the control PC.
Key Specifications
| External dimensions | About W97mm x D160mm x H28mm |
|---|---|
| Product weight | About 380g (excluding AC adapter) |
| Rated voltage | AC100V±10％ 50/60Hz |
| Tilt angle (control range) | 0° to 20° (1° step) |
| Maximum load weight | 600g |
| Compatible plates | Various SBS standard plates 6/12/24/96/well plates (vertical installation) |
| Compatible models | EDR-384SX, EDR-384SX-6, EDR-24LX, EDR-VS series, ADS-384-24 |
Product introduction video
- Medium exchange(4:03 minutes explanation)
