Other devicesBioTEMP PEC-T25

Peltier type compact temperature control unit
Cooling/heating unit + controller price
¥600,000
  • Easy to use just by connecting to a power source.

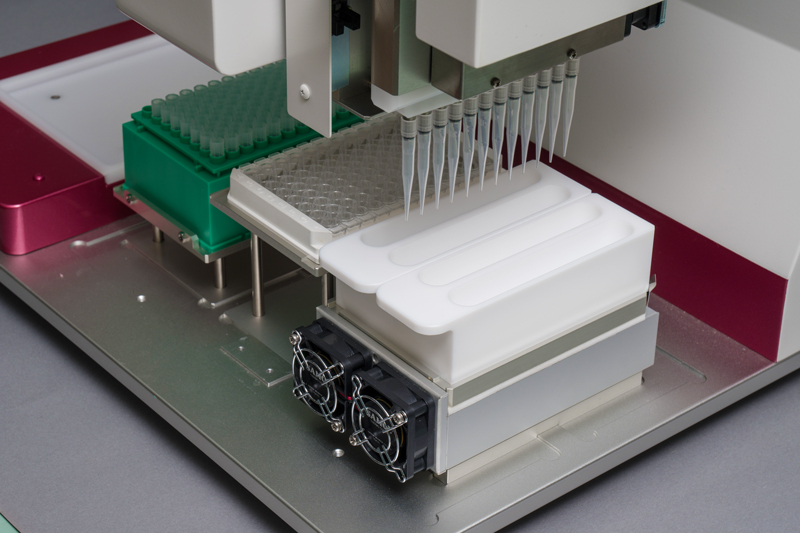

  • The cooling/heating unit is the size of a microplate, so it saves space.

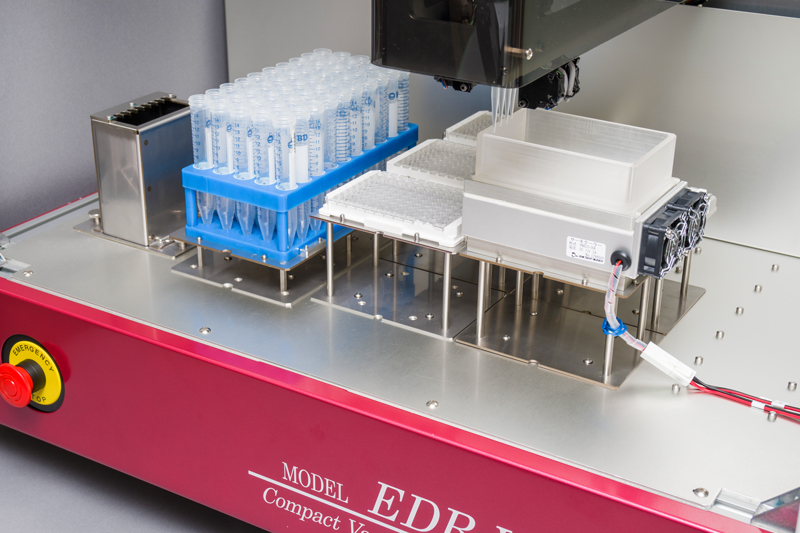

  • Compatible with a variety of models and layouts.
  • Controlled by a high-precision controller with built-in DC power supply.
    Temperature can be directly controlled by the control PC software.
Product Catalog

Key Specifications

Rating Continuous
Rated voltage AC100V 50/60Hz
Operating voltage range AC90-110V
Maximum temperature difference (Δt) 25℃
Temperature accuracy ±0.5℃ of indicated value
Control method PID pulse width control
Temperature display Digital 4 digits
Settable temperature -10℃-50℃
Operating environment temperature 35-85％RH
Communication function RS485
External dimensions Cooling/heating unit: W92mmxD162mmxH49mm
Controller：W178mmxD250mmxH100mm
Compatible plates Various SBS standard plates (96/384/1536 well plates, deep well plates, PCR plates, etc.)

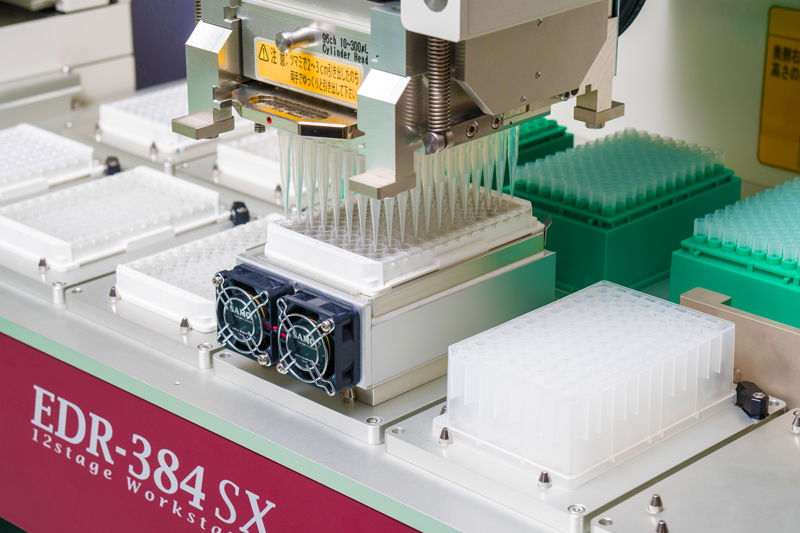

Compatible models EDR-384GX, EDR-384SX, EDR-384SX-6, EDR-384SR (384ch head only), EDR-384SE, ADS-384-24,
EDR-24LX, EDR-8LZ, EDR-VS series

Frequently Asked Questions

Can I use 24-well or 48-well plates?
Yes, you can. We can manufacture adapters optimized for the target plate shape.
How long does it take to cool down to 4℃?
It takes about 10 minutes to lower the surface temperature of the cooling unit to 4℃.
Is it possible to control the temperature from the PC that controls the dispenser?
Currently, it can only be controlled with the BioTemp dedicated controller.
