Bio-Navi | BIOTEC Co., Ltd. for Pipetting Systems Made in Japan

Other devicesBio-Navi

Pipette Navigation: Bluetooth-equipped electric pipette + dispensing recognition system PPS + control software + control PC *Barcode reader is optional; ¥1,850,000

A system of Bluetooth-equipped electric pipettes and position recognition devices!

A new dispensing support tool like no other has been released! !

■Navigates the operator’s pipette operation

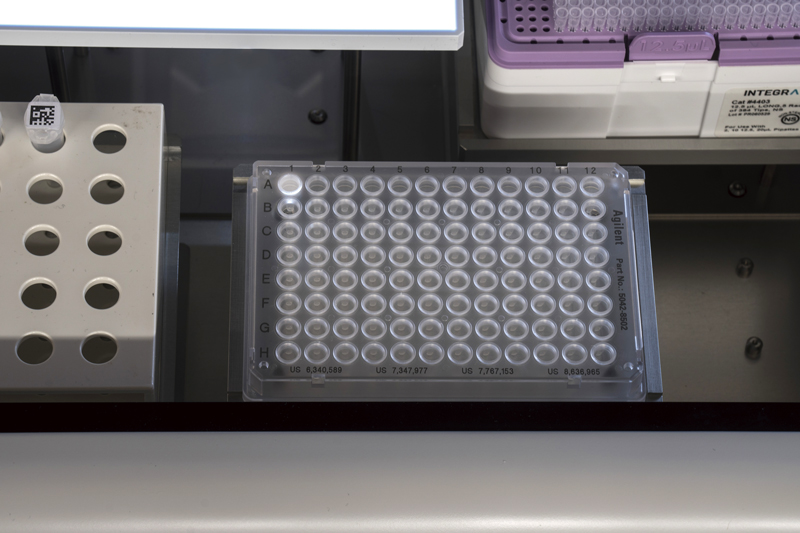

■Manages the position of the target tubes and wells of the microplate

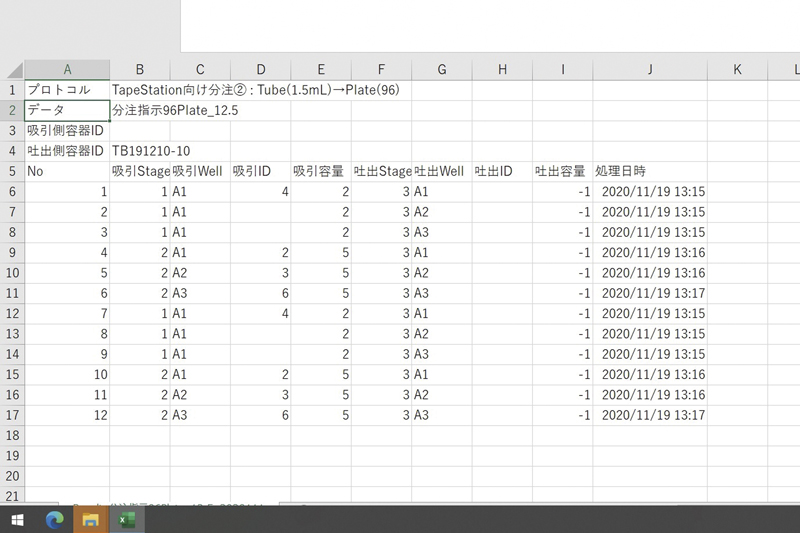

■Save the work record as an electronic file in the PC

Convenient touch panel operation with a control laptop.
Easy data reflection by referencing CSV files based on work instructions.

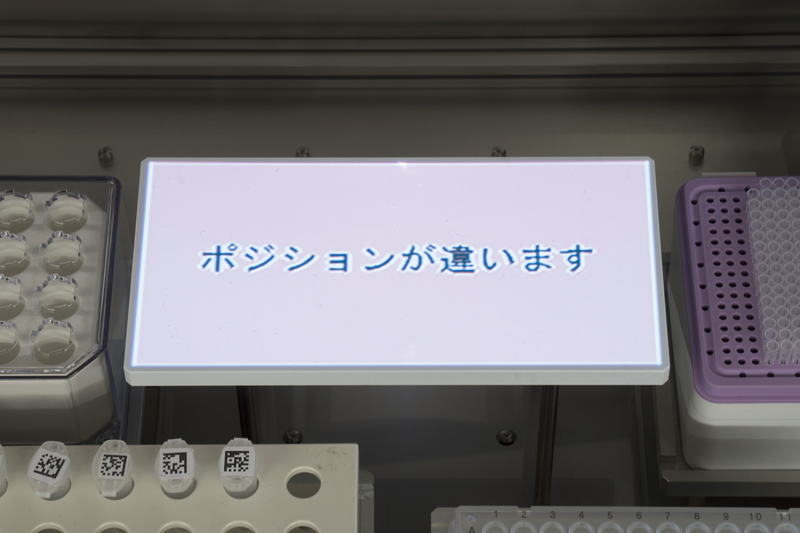

Pipette operation navigation by projection mapping and voice.
Automatic variable dispensing amount, prevention of human error by locking the aspiration and discharge buttons due to incorrect operation.
Operation log management is possible.
ID information can also be managed by connecting to a barcode reader.

Dispensing volume	0.5-12.5μL 2-50μL 5-125μL 10-300μL 50-1250μL 100-5000μL *All single channel
Compatible plates	Various microplates (up to 96 wells), microtubes, reagent tubes, blood collection tubes, etc.
Number of stages	Maximum 6 stages (microplates)*The maximum number of stages varies depending on the size of the container.
Control	Dedicated control software
External dimensions	W585㎜×D635㎜×H400㎜
Weight	About 13kg

Are there any restrictions on the containers that can be used?: There are dedicated adapters for basic containers, but for special containers, we can manufacture adapters to accommodate them.

Can I use multiple pipettes in one program because the dispensing amounts are different?: There is a multi-mode that allows you to specify multiple pipettes, so up to four pipettes can be used in one program.

Can I put it in a safety cabinet or clean bench?: Yes, if there is storage space that can fit the Bio-Navi main unit, but it is difficult with ready-made products. We can also change the size of the main unit by custom order, so please contact our sales representative.
